Why Choose the ILME CQM 08E Male Insert?

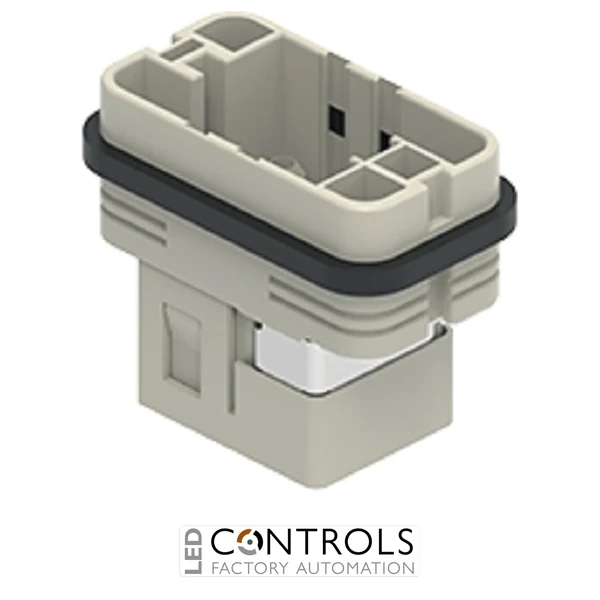

The ILME CQM 08E is a robust male multipole connector insert from the ILME CQ series, designed for reliable electrical connections in industrial machinery, automation equipment and heavy-duty connector assemblies. It provides 8 poles plus protective earth (PE) and uses crimp termination for secure, vibration-resistant conductor connections.
Designed for ILME size 32.13 connector housings, the CQM 08E combines compact dimensions with a rated current of 16 A and rated voltage of 500 V. The insert is supplied with a PE plate, providing additional protective-earth functionality within compatible connector assemblies.
The polycarbonate insert supports conductors from 0.14–4 mm² or AWG 26–12 and is engineered for at least 500 mating cycles. Its wide operating temperature range and high insulation performance make it suitable for dependable use in demanding industrial environments.
Key Advantages
- 8 poles plus protective earth for multipole industrial connections.
- 16 A rated current for machinery and automation circuits.
- 500 V rated voltage with 6 kV rated impulse withstand voltage.
- Crimp termination provides secure and vibration-resistant conductor connections.
- Includes a PE plate for protective-earth connection requirements.
- Compact size 32.13 format for compatible ILME connector housings.
- Designed for at least 500 mating cycles.
Key Features
- ILME CQ series male insert.
- 8 poles + PE contact configuration.
- Crimp connection termination.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Conductor range from 0.14–4 mm².
- Compatible wire sizes from AWG 26–12.
- Polycarbonate insulating body with UL 94 V-0 flammability classification.
- Operating temperature range from -40 °C to +125 °C.
Reliable Connections for Industrial Equipment
Crimp connector inserts such as the ILME CQM 08E provide reliable electrical connections by mechanically compressing the contact onto the conductor. When correctly assembled with compatible ILME crimp contacts and tooling, this method produces a low-resistance connection with excellent resistance to vibration and mechanical stress.
The CQ series is designed for compact industrial connector applications where multiple circuits must be connected and disconnected efficiently. When installed in a suitable ILME hood or housing, the CQM 08E forms part of a robust connector system suitable for machinery, control panels and industrial automation equipment.
Typical Applications
- Industrial machinery and automation systems.
- Machine tools and production equipment.
- Motor and actuator connections.
- Control cabinets and electrical panels.
- Robotics and material handling equipment.
- Packaging and processing machinery.
- Heavy-duty multipole connector assemblies.
