Why Choose the ILME CQM 07 Male Insert?

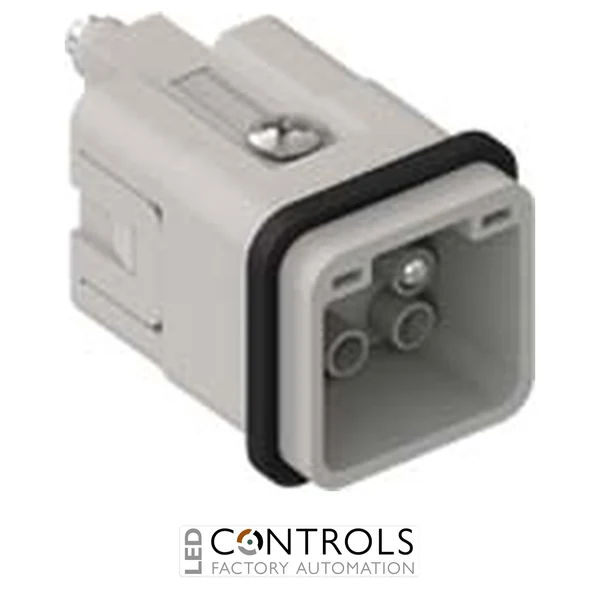

The ILME CQM 07 is a compact male industrial connector insert from the ILME CQ series, providing 7 poles plus protective earth (7P+PE) within the space-saving size 21.21 format. Designed for crimp termination, it provides a practical multipole connection for industrial machinery, automation equipment and control systems where connector space is limited.
Rated at 10 A, 400 V with a 6 kV rated impulse withstand voltage and pollution degree 3, the CQM 07 provides dependable electrical performance for control, auxiliary and lower-current power circuits. It also has a rated voltage of 600 V according to UL/CSA, supporting its use in professionally engineered industrial connector assemblies.
The CQM 07 is supplied without contacts, including the PE contact, allowing compatible ILME male crimp contacts to be selected separately for conductor sizes from 0.14–2.50 mm². With polycarbonate construction, a wide -40 °C to +125 °C operating range and mechanical durability of at least 500 mating cycles, it is designed for reliable long-term industrial service.
Key Advantages
- Compact 7 poles plus protective earth (7P+PE) configuration.
- 10 A, 400 V rating for industrial control, auxiliary and power circuits.
- Professional crimp termination for consistent electrical and mechanical connections.
- Compact size 21.21 format helps minimise connector footprint.
- Compatible crimp contacts cover conductors from 0.14–2.50 mm².
- Designed for at least 500 mating cycles for dependable service life.
Key Features
- ILME CQ series male connector insert.
- 7 poles + PE.
- 10 A rated current.
- 400 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Pollution degree 3.
- 600 V rated voltage according to UL/CSA.
- Crimp connection with contacts ordered separately.
- Compatible conductor range of 0.14–2.50 mm² / AWG 26–14.
- Compact size 21.21 connector format.
- Mechanical durability of at least 500 mating cycles.
- Self-extinguishing UL 94 V-0 polycarbonate construction.
Compact 7-Pole Crimp Connectivity for Industrial Equipment
The ILME CQM 07 combines seven electrical poles plus protective earth within a compact size 21.21 footprint, making it particularly useful for equipment where space-efficient multipole connectivity is required. The detachable connector arrangement can simplify machine assembly, commissioning and servicing by allowing multiple circuits to be connected or disconnected through one interface.
Compatible 10 A male crimp contacts are available for conductor cross-sections of 0.14–0.37 mm², 0.50 mm², 0.75 mm², 1.00 mm², 1.50 mm² and 2.50 mm². Selecting the appropriate contact and using suitable crimp tooling provides a consistent termination while retaining the flexibility and serviceability of the ILME heavy-duty connector system.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Control panels and electrical cabinets.
- Robotics and automated manufacturing systems.
- Packaging and processing machinery.
- Conveyors and material handling equipment.
- Control, auxiliary and lower-current power connections.
- Industrial equipment requiring compact detachable multipole connectivity.
