Why Choose the ILME CQM12 Male Connector Insert?

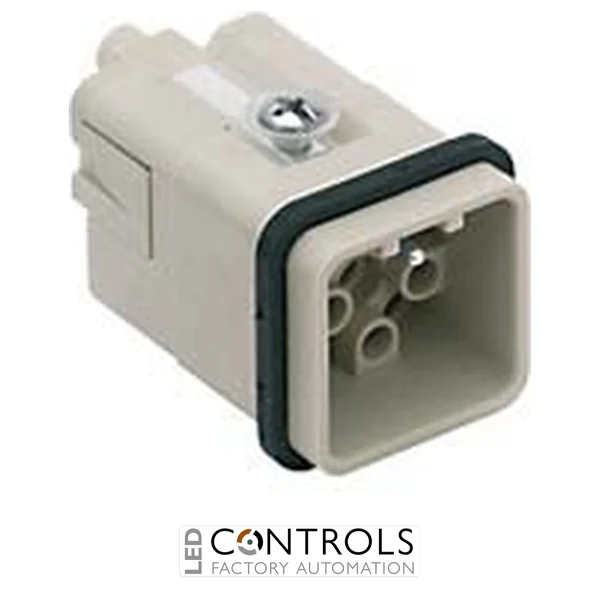

The ILME CQM12 is a compact and reliable male industrial connector insert designed for multi-pole electrical connections in machinery, automation and industrial control systems. As part of the established ILME CQ series, it provides 12 poles plus protective earth within the compact size 21.21 format, making it suitable for applications where connection density and installation space are important.
This insert uses crimp connection technology, allowing contacts to be selected according to the conductor size required by the application. The removable crimp contact system provides secure, low-resistance connections and simplifies assembly and maintenance, while the robust polycarbonate insert is designed to withstand the demanding conditions encountered in industrial machinery.
With a rated current of 10 A and rated voltage of 400 V, the CQM12 is suitable for power, control and signal circuits in industrial equipment. Its size 21.21 format enables installation within compatible compact ILME hoods and housings to create a robust, quick-disconnect industrial connector assembly.
Key Advantages
- Compact 12-pole plus protective earth male connector insert.
- 10 A rated current for industrial power, control and signal connections.
- 400 V rated voltage suitable for industrial electrical systems.
- Reliable crimp termination with removable contacts.
- Compact size 21.21 format helps minimise installation space.
- Designed for use with compatible ILME heavy-duty rectangular connector enclosures.
Key Features
- ILME CQ series male insert.
- 12 poles plus protective earth.
- 10 A rated current.
- 400 V rated voltage.
- 6 kV rated impulse withstand voltage.
- 600 V UL/CSA rated voltage.
- Crimp termination with contacts ordered separately.
- Conductor capacity from 0.14–2.5 mm².
- Mechanical life of ≥500 mating cycles.
- Operating temperature range of -40 °C to +125 °C.
Reliable Compact Connectivity for Industrial Machinery
Heavy-duty rectangular connectors provide a convenient way to connect multiple electrical circuits through a single removable interface. The ILME CQ series is designed for compact industrial installations, allowing machine builders and automation engineers to combine multiple power, control or signal conductors within a space-efficient connector assembly.
The CQM12 uses removable crimp contacts to provide secure electrical termination while allowing the appropriate contact to be selected for conductor sizes from 0.14–2.5 mm². When installed in a suitable ILME enclosure, the insert forms part of a robust connector system capable of providing high levels of environmental protection for demanding industrial applications.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical control panels and machine cabinets.
- Robotics and automated handling equipment.
- Packaging and processing machinery.
- Compact power, control and signal connections.
