Why Choose the ILME CQS08VA EMC Hood?

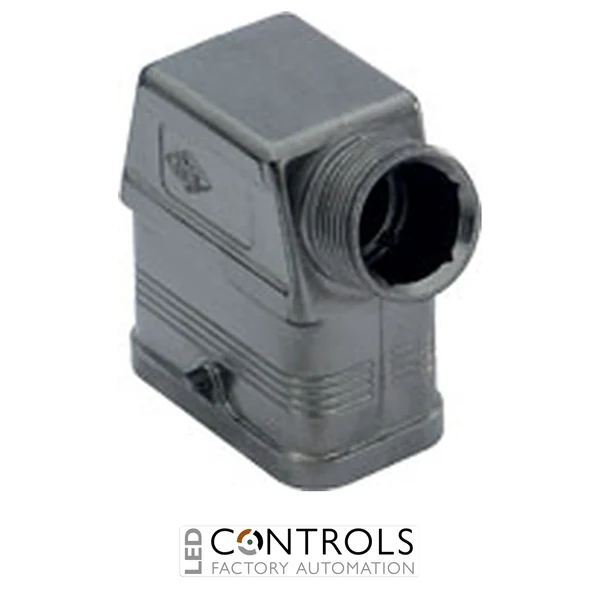

The ILME CQS08VA is a compact EMC thermoplastic connector hood designed to protect compatible ILME multipole connector inserts while supporting electromagnetic compatibility in industrial machinery, automation and control installations. Part of the ILME CQS EMC enclosure series, it features 2 locking pegs, a Pg16 side cable entry and the compact 32.13 connector size.
The CQS08VA uses a metallised insulating thermoplastic construction designed specifically for EMC applications. The conductive enclosure system helps provide continuity for cable shielding when correctly assembled with suitable EMC accessories, making it particularly useful around industrial equipment where electromagnetic interference can affect sensitive signals and control circuits.
With protection ratings of IP65 / IP66 / IP69 when correctly assembled with compatible components, the CQS08VA provides dependable environmental protection for industrial connector systems. Its side-entry Pg16 cable connection supports compact cable routing, while the two integral pegs provide the locking interface for a compatible lever-equipped mating enclosure.
Key Advantages
- EMC metallised thermoplastic construction for shielded industrial connector applications.
- Pg16 side cable entry supports compact and convenient cable routing.
- 2 locking pegs for secure coupling with a compatible lever-equipped enclosure.
- Compact size 32.13 format for space-conscious machinery and automation installations.
- IP65 / IP66 / IP69 protection when correctly assembled with compatible connector components.
- Suitable for use with compatible ILME CQ series inserts and EMC accessories.
Key Features
- ILME CQS EMC series connector hood.
- EMC version with metallised insulating enclosure construction.
- 2-peg locking configuration.
- Side cable entry.
- Pg16 male thread on the exterior of the hood.
- Size 32.13 connector format.
- IP65 / IP66 / IP69 degree of protection when correctly assembled.
- Operating temperature range of -40 °C to +125 °C.
- Designed for industrial EMC and heavy-duty connector applications.
EMC Protection for Industrial Connector Systems
Industrial machinery can contain drives, motors, switching devices and communication systems capable of generating or receiving electromagnetic interference. The metallised thermoplastic construction of the ILME CQS08VA is designed to form part of an EMC-compatible connector assembly, helping maintain cable shield continuity when installed with the appropriate components.
When the CQS08VA is used with a CQM male insert, the standard gasket supplied with the male insert should be replaced by the separately ordered ILME CR 08 EMC conductive gasket. For the Pg16 cable entry, ILME's compatible CRQ 16 EMC cable-gland system can be used to interface the cable shield with the enclosure.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Motor drives and motion-control systems.
- Robotics and automated handling equipment.
- Electrical control and instrumentation systems.
- Shielded signal, control and power connector assemblies.
