Why Choose the Ilme CQYF05 Female Insert?

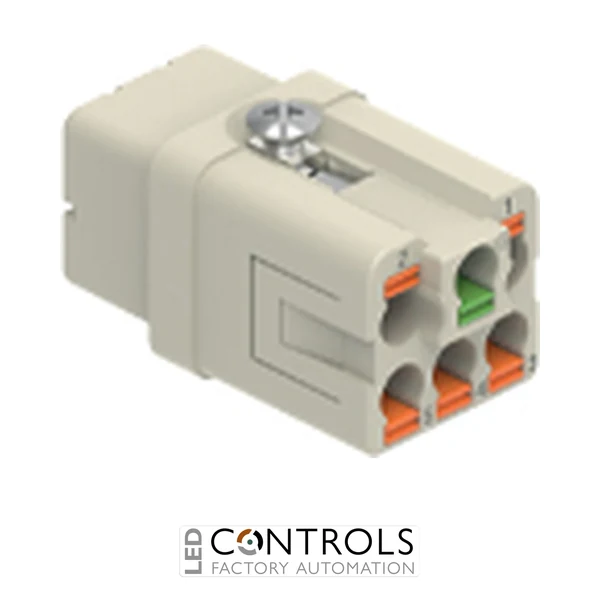

The Ilme CQYF05 is a compact 5-pole plus protective earth female connector insert from the Ilme CQY series, designed for dependable industrial power and control connections. Rated at 16 A, 230/400 V, it combines high connection density with the compact size 21.21 format for machinery and automation applications where installation space is limited.
The CQYF05 features Ilme AXYR® high-density spring push-in technology, enabling conductors to be connected without conventional screw tightening or separate crimp contacts. The tool-less spring-terminal design provides consistent conductor clamping and helps reduce installation time while supporting reliable performance in demanding industrial equipment.

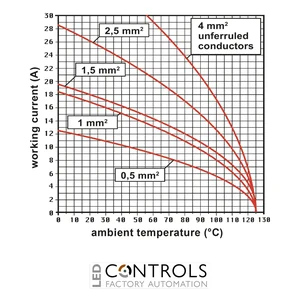

Designed for conductors from 0.25–4.00 mm² or AWG 24–14, the CQYF05 features turned silver-plated contacts, insulation resistance of at least 10 GΩ and a mechanical life of at least 500 mating cycles. Its polycarbonate insulating body is rated UL 94 V-0 and suitable for operating temperatures from -40 to +125 °C.
Key Advantages
- Compact 5-pole + PE female connector insert.
- Rated at 16 A, 230/400 V for industrial electrical connections.
- AXYR® spring push-in termination enables tool-less conductor connection.
- Accepts a broad conductor range of 0.25–4.00 mm².

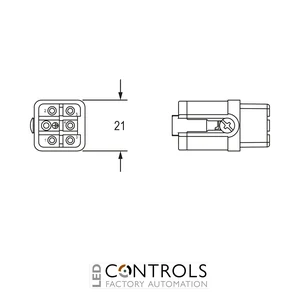

- High-density size 21.21 format minimises connector space requirements.
- At least 500 mating cycles for dependable service life.
- Compatible enclosures can provide protection up to IP69.
Key Features
- Ilme CQY series female insert.
- 5 poles + protective earth (5P+PE).
- Female connection.
- AXYR® high-density spring terminal connection without tools.
- Rated current: 16 A.
- Rated voltage: 230/400 V.
- Rated impulse withstand voltage: 4 kV.
- Pollution degree: 3.
- UL/CSA rated voltage: 600 V.
- Turned silver-plated contacts.
- Compact size 21.21 connector format.
Tool-Less AXYR® Spring Connectivity
Ilme AXYR® technology uses a high-density spring push-in terminal system to simplify conductor installation. Instead of tightening screw terminals or fitting separate crimp contacts, prepared conductors can be connected directly to the spring terminals, helping improve assembly speed while maintaining consistent clamping force.
Combined with the CQYF05's compact 5P+PE arrangement, this technology provides an efficient solution for machinery requiring multiple detachable circuits in limited space. When installed with its corresponding male insert and a suitable Ilme enclosure, the connector assembly can achieve environmental protection ratings including IP66, IP67, IP68 and IP69, depending on the selected enclosure.
Typical Applications
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Robotics and automated handling systems.
- Motor and drive connections.
- Electrical control panels and cabinet assemblies.
- Compact power and control interconnections.
- OEM equipment requiring fast, tool-less field wiring.
