Why Choose the Ilme CQYF08E Female Insert?

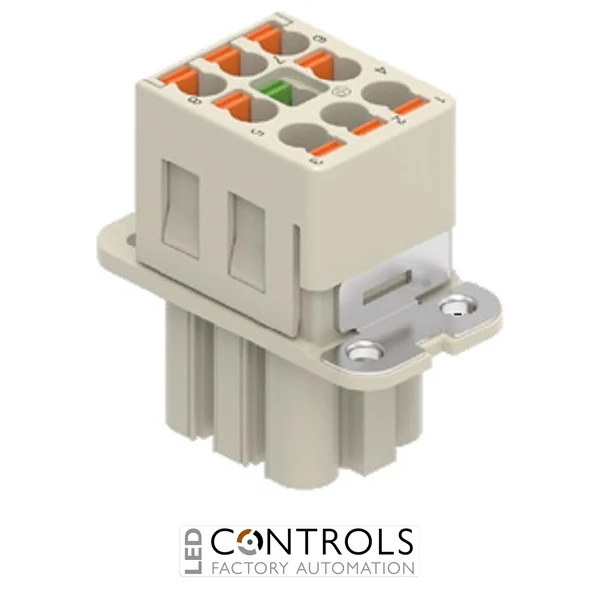

The Ilme CQYF08E is a compact 8-pole plus protective earth female connector insert designed for industrial machinery, automation and control-system connections. Part of the Ilme CQY series, it combines a 16 A current rating with the compact size 32.13 connector format.
The CQYF08E features Ilme AXYR spring connection technology, providing fast conductor termination without conventional screw terminals or separate crimp contacts. Spring pressure maintains a secure electrical connection, helping simplify assembly and supporting dependable performance in equipment exposed to vibration and repeated operation.
With 8 poles plus PE, the CQYF08E provides a space-efficient solution for carrying multiple power, control and auxiliary circuits through one detachable interface. The E version incorporates a PE plate for protective-earth continuity with a suitable metallic connector enclosure, making it particularly useful in industrial installations requiring effective protective bonding.
Key Advantages
- Compact 8-pole + PE female connector insert.
- 16 A rated current for industrial electrical connections.
- AXYR spring termination enables fast conductor installation.
- Spring-clamp technology maintains consistent contact pressure without routine screw retightening.
- Integrated PE plate supports protective-earth continuity with a suitable metallic enclosure.
- Compact size 32.13 format provides high connection density.
- Suitable for power, control and auxiliary circuits in industrial equipment.
Key Features
- Ilme CQY series female multipole insert.
- 8 poles + protective earth (8P+PE).
- Female contact configuration.
- 16 A rated current.
- AXYR spring connection technology.
- PE plate version for protective-earth contact with a suitable metallic enclosure.
- Compact size 32.13 connector format.
- High-density arrangement for multi-circuit industrial wiring.
- Designed for compatible Ilme heavy-duty connector assemblies.
Compact AXYR Spring Connectivity
Ilme AXYR spring technology provides an efficient alternative to conventional screw and crimp termination by using spring pressure to secure the conductor. This helps shorten wiring time while maintaining consistent clamping force, making the CQYF08E well suited to production machinery and automation systems where dependable connections and efficient assembly are important.
The eight-pole arrangement provides substantial connection capacity within the compact size 32.13 format, while the PE plate adds a protective-earth interface with a compatible metallic enclosure. When paired with the corresponding male insert and suitable Ilme hood or housing, the CQYF08E forms part of a robust detachable connector system for industrial installations.
Typical Applications
- Industrial machinery and machine-building systems.
- Factory automation and production equipment.
- Robotics and automated handling systems.
- Motor, actuator and drive connections.
- Electrical control panels and cabinet assemblies.
- Combined power and control interconnections.
- OEM equipment requiring compact spring-terminal wiring.
