Why Choose the ILME CQYM 05 Male Insert?

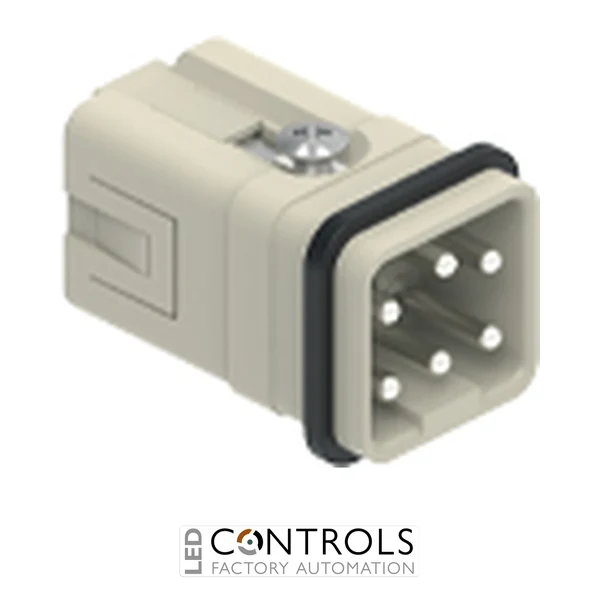

The ILME CQYM 05 is a compact and reliable male multipole connector insert designed for industrial machinery, control systems and electrical equipment requiring secure power and signal connections. As part of the ILME CQY series, it combines a space-saving size 21.21 format with ILME’s AXYR® high-density spring push-in connection technology for fast, tool-free conductor termination.
This insert provides 5 poles plus protective earth and is rated at 16 A, 230/400 V according to EN 61984. The AXYR® spring push-in terminals simplify wiring while maintaining a dependable electrical connection, making the CQYM 05 particularly suitable for compact industrial connector assemblies where installation speed and connection reliability are important.
With support for conductor cross-sections from 0.25–4.00 mm², turned silver-plated contacts and a rated impulse withstand voltage of 4 kV, the CQYM 05 is designed for demanding industrial applications. When installed in a suitable ILME enclosure, the connector assembly can achieve high degrees of environmental protection for use in machinery and automation installations.
Key Advantages
- Compact male industrial connector insert with 5 poles plus earth.
- 16 A, 230/400 V rating for industrial power and control connections.
- AXYR® spring push-in terminals enable fast, tool-free conductor connection.
- Accepts conductor sizes from 0.25–4.00 mm² / AWG 24–14.
- Turned silver-plated contacts provide low and stable contact resistance.

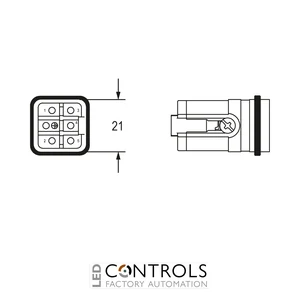

- Compact size 21.21 format saves installation space.
Key Features
- ILME CQY connector insert series.
- Male insert with 5 poles + PE.
- 16 A rated current.
- 230/400 V rated voltage.
- 4 kV rated impulse withstand voltage.
- AXYR® high-density spring terminal connection without tools.
- 0.25–4.00 mm² conductor capacity.
- Turned silver-plated electrical contacts.
- Mechanical life of at least 500 mating cycles.
- Compact 21.21 insert size.
Reliable Connections for Industrial Equipment
Industrial multipole connectors such as the ILME CQY series provide a convenient method of connecting multiple electrical circuits through a single compact interface. Removable inserts simplify equipment installation, servicing and replacement while suitable connector housings protect the contacts against environmental conditions encountered in industrial applications.
The CQYM 05 uses ILME’s AXYR® spring push-in technology to allow conductors to be terminated without conventional screw connections. This helps reduce installation time while providing a secure spring-loaded connection capable of maintaining consistent contact pressure during normal industrial operation.
Typical Applications
- Industrial machinery and equipment connections.
- Factory automation and production systems.
- Electrical control panels and machine cabinets.
- Motor, actuator and sensor connection systems.
- Material handling and conveyor equipment.
- OEM machine building and industrial installations.
