Why Choose the ILME CQYM 08E Male Insert?

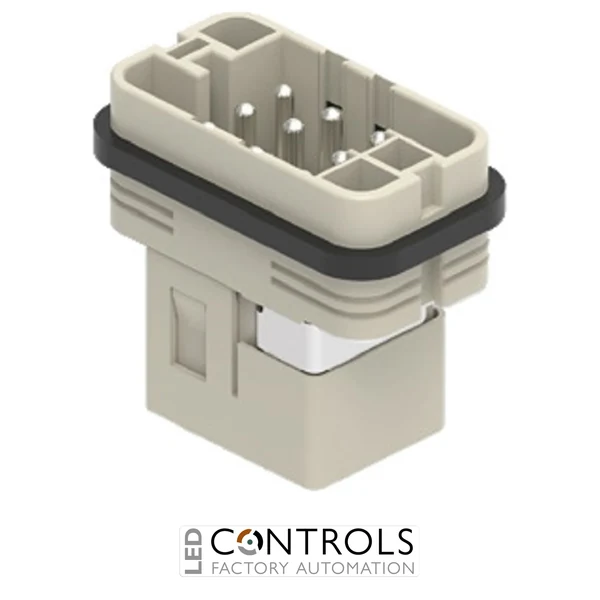

The ILME CQYM 08E is a compact and reliable male multipole connector insert designed for industrial machinery, automation systems and electrical equipment requiring secure, high-density connections. As part of the ILME CQY series, it combines a compact size 32.13 format with ILME’s AXYR® high-density spring push-in terminal technology for fast and convenient conductor termination without tools.
This male insert provides 8 poles plus protective earth (PE) and is rated at 16 A and 500 V. The AXYR® spring terminal system simplifies wiring while maintaining a dependable electrical connection, making the CQYM 08E particularly suitable for machine builders, panel builders and industrial automation applications where installation efficiency and connection reliability are important.
With a conductor capacity of 0.25–4.00 mm², turned silver-plated contacts and a rated impulse withstand voltage of 6 kV, the CQYM 08E provides robust electrical performance in a space-saving format. The insert also incorporates a PE plate and can achieve IP66, IP67 or IP69 protection when correctly installed in a suitable ILME enclosure.
Key Advantages
- Compact male industrial connector insert with 8 poles plus earth.
- 16 A, 500 V rating for industrial power and control connections.
- AXYR® high-density spring push-in terminals enable connection without tools.
- Accepts conductor cross-sections from 0.25–4.00 mm².
- Turned silver-plated contacts provide dependable electrical connections.
- Compact size 32.13 format for space-efficient connector assemblies.
Key Features
- ILME CQY connector insert series.
- Male insert with 8 poles + PE.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- AXYR® high-density spring terminal connection without tools.
- 0.25–4.00 mm² conductor capacity.
- Turned silver-plated electrical contacts.
- Integrated PE plate.
- Mechanical life of at least 500 mating cycles.
- Compact 32.13 insert size.
Reliable Connections for Industrial Equipment
Industrial multipole connectors such as the ILME CQY series provide an efficient way to connect multiple electrical circuits through a single compact interface. Removable connector inserts simplify machine installation, maintenance and equipment replacement while compatible enclosures provide environmental protection for demanding industrial applications.
The CQYM 08E uses ILME’s AXYR® high-density spring push-in technology to allow conductors to be terminated without conventional screw connections or specialist termination tools. This helps reduce wiring time while providing consistent spring pressure for a secure electrical connection in machinery, control panels and industrial automation equipment.
Typical Applications
- Industrial machinery and equipment connections.
- Factory automation and production systems.
- Electrical control panels and machine cabinets.
- Motor, actuator and control equipment connections.
- Material handling and conveyor systems.
- Packaging and processing machinery.
- OEM automation systems and machine building.
