Why Choose the Ilme CR10BPE PE Earth Jumpers?

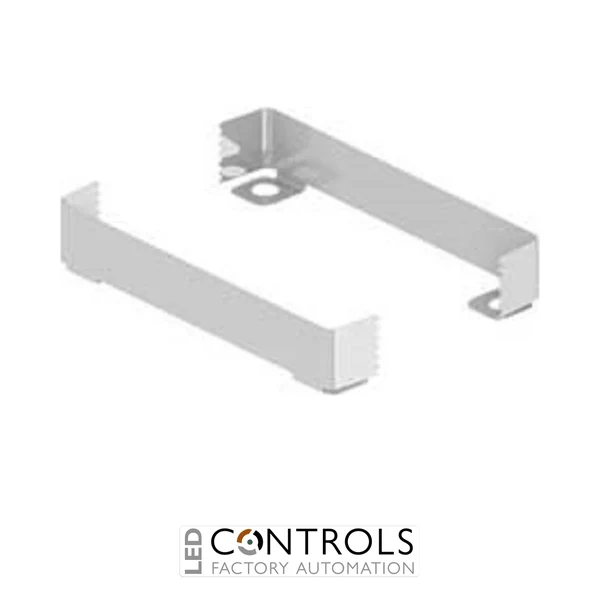

The Ilme CR10BPE is a pair of protective earth (PE) jumpers designed for compatible Ilme industrial connector enclosures and inserts in size 57.27. These dedicated connector accessories provide an additional protective earth path between the PE connections of the male and female connector inserts, supporting dependable protective earthing within suitable industrial connector assemblies.
Designed for use with compatible Ilme T-TYPE insulating enclosures and COB systems, the CR10BPE jumpers are installed beneath the connector inserts. Ilme specifies that the two supplied jumpers must be used together rather than individually, helping maintain correct insert alignment while providing the intended protective earth continuity.
Manufactured from galvanised brass, the CR10BPE is engineered as a robust accessory for industrial machinery, automation and electrical connection systems. The size-specific design ensures compatibility with 57.27 connector assemblies, making these jumpers a practical addition when protective earth bridging is required within compatible Ilme installations.
Key Advantages
- Dedicated protective earth jumper pair for compatible Ilme connector systems.
- Designed specifically for size 57.27 inserts and enclosures.
- Suitable for compatible T-TYPE insulating enclosures and COB systems.
- Provides an additional protective earth continuity path between connector inserts.
- Manufactured from durable galvanised brass.
- Supplied as a matched pair that is installed together for correct operation and insert alignment.
Key Features
- Ilme CR10BPE protective earth accessory.
- Pair of PE earth jumpers.
- Designed for 57.27 size connector assemblies.
- Compatible with selected Ilme T-TYPE and COB systems.
- Installed beneath compatible connector inserts.
- Connects the protective earth points associated with the mating connector arrangement.
- Galvanised brass construction.
- Both jumpers are intended to be installed together.
Reliable Protective Earth Continuity for Industrial Connectors
Protective earth continuity is an important consideration in industrial connector assemblies. The Ilme CR10BPE jumpers are designed to connect the protective earth points associated with compatible male and female inserts, providing an additional PE path within suitable T-TYPE and COB connector installations.
The CR10BPE accessories are mounted beneath the inserts and are designed to be used as a pair. This arrangement supports both the intended protective earth connection and correct positioning of the inserts inside the enclosure, providing a purpose-designed Ilme solution for compatible size 57.27 connector assemblies.
Typical Applications
- Ilme T-TYPE insulating connector enclosures.
- Compatible Ilme COB connector systems.
- Industrial machinery connector assemblies.
- Factory automation and production equipment.
- Electrical control and machine wiring systems.
- Machine building and OEM equipment.
- Industrial connector installations requiring additional PE continuity.
