Why Choose the ILME CR 16 AT MIXO Earth Cable Anchorage?

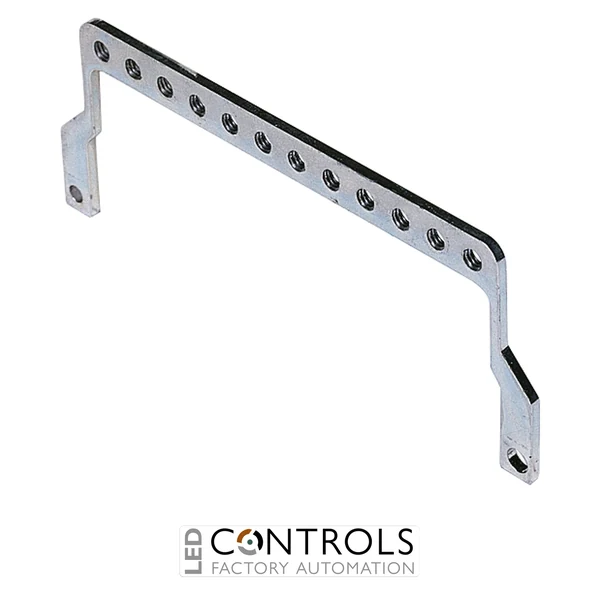

The ILME CR 16 AT is a robust protective earth (PE) cable anchorage designed for use with ILME MIXO modular connector frames. Manufactured from zinc-plated steel, it provides a practical means of connecting multiple protective earth cables to the connector assembly while supporting reliable earthing in industrial machinery and automation installations.
Designed specifically for size 77.27 enclosures and MIXO frames for 4 modular units, the CR 16 AT mounts directly onto the MIXO frame. This enables several PE conductors to be terminated at a common anchorage point, helping machine builders and panel designers create organised and dependable protective-earth connections within heavy-duty connector assemblies.
The CR 16 AT can be used with compatible MIXO frames installed in bulkhead-mounting housings, COB series enclosures and suitable high-construction hoods with top cable entry. Its zinc-plated steel construction provides mechanical strength and corrosion resistance for demanding industrial connector applications.
Key Advantages
- Designed for connecting multiple protective earth (PE) cables.
- Compatible with ILME MIXO modular connector frames.
- Designed for size 77.27 connector assemblies.
- Suitable for MIXO frames accommodating 4 modular units.
- Robust zinc-plated steel construction.
- Provides an organised and secure earthing point within industrial connector assemblies.
Key Features
- ILME MIXO connector accessory.
- Protective earth cable anchorage.
- Designed for multiple PE connection cables.
- Size 77.27 compatibility.
- For MIXO frames with 4 modular units.
- Manufactured from zinc-plated steel.
- Mounts directly onto compatible MIXO frames.
- Suitable for compatible bulkhead housings, COB enclosures and high-construction top-entry hoods.
Reliable Protective Earth Connections for MIXO Systems
Protective earth connections are an important part of industrial electrical installations, providing a low-impedance path for fault current and helping exposed conductive components remain safely referenced to earth. The ILME CR 16 AT provides a dedicated anchorage point for several PE conductors within a compatible MIXO modular connector assembly.
By mounting directly onto the MIXO frame, the CR 16 AT keeps protective-earth wiring associated with the connector assembly organised and mechanically supported. Its compatibility with four-module MIXO frames makes it particularly useful in larger modular connector configurations where several circuits or cables require protective-earth connections.
Typical Applications
- ILME MIXO modular connector assemblies.
- Industrial machinery and automation equipment.
- Multiple protective-earth conductor connections.
- Electrical control panels and machine cabinets.
- Factory automation and production systems.
- Material handling and conveyor equipment.
- OEM machinery and industrial installations.
