Why Choose the ILME CR16SC Cable Anchorage?

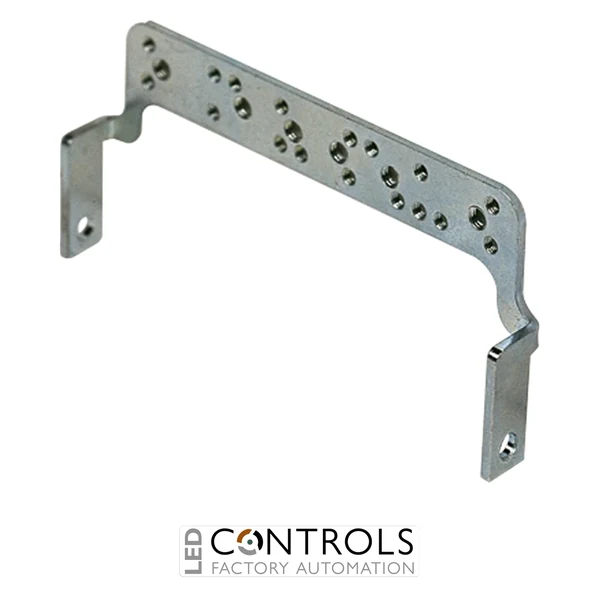

The ILME CR16SC is a purpose-designed cable anchorage for multiple shielded PE cables, providing a practical way to establish protective earth and cable-screen connections within compatible ILME multipole connector assemblies. Designed for standard inserts, it is suitable for connector enclosure sizes 77.27 and 77.62.
Manufactured from zinc-plated iron, the CR16SC mounts to compatible connector inserts and provides a common anchorage point for connecting multiple protective-earth conductors and screened cable braids. This supports organised and mechanically secure shield and earth termination in industrial machinery, automation and control installations.
The CR16SC can be used in compatible bulkhead mounting housings, COB series enclosures and high-construction hoods with top cable entry. For cable-screen clamping, it can be combined with ILME CR05CA or CR10CA U-bolts for appropriate 5 mm or 10 mm cable screening arrangements.
Key Advantages
- Provides a dedicated earth and shield anchorage for compatible standard ILME inserts.
- Supports multiple shielded PE cable connections within one connector assembly.
- Compatible with enclosure and insert sizes 77.27 and 77.62.
- Manufactured from robust zinc-plated iron.
- Can be combined with dedicated ILME U-bolts for secure cable-screen termination.
- Suitable for industrial installations where organised protective-earth and screening connections are required.
Key Features
- ILME CR series connector accessory.
- Cable anchorage for standard inserts.
- Designed for multiple shielded PE cables.
- Suitable for 77.27 and 77.62 enclosure and insert sizes.
- Zinc-plated iron construction.
- Supports protective-earth and screened cable braid termination.
- Compatible with CR05CA and CR10CA cable-screen U-bolts.
- Suitable for compatible bulkhead housings, COB enclosures and high-construction top-entry hoods.
Earth and Shield Termination for Multipole Connectors
Industrial cables often incorporate protective-earth conductors and screening to improve electrical safety and electromagnetic compatibility. The CR16SC provides a metallic anchorage point within a compatible connector assembly so that multiple earth connections and screened cable braids can be terminated in an organised and mechanically secure manner.
For screened cables, ILME offers the CR05CA and CR10CA U-bolt accessories, which mount to CR..SC anchorages for suitable cable-screen diameters. ILME recommends high-construction hoods with top entry where this anchorage system is installed in a hood, providing the necessary internal space for the insert, anchorage and cable terminations.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Shielded control and signal cable connections.
- Protective-earth connections in multipole connectors.
- Motor, drive and motion-control installations.
- Industrial connector assemblies requiring multiple earth or screen terminations.
