Why Choose the Ilme CR24BPE PE Earth Jumpers?

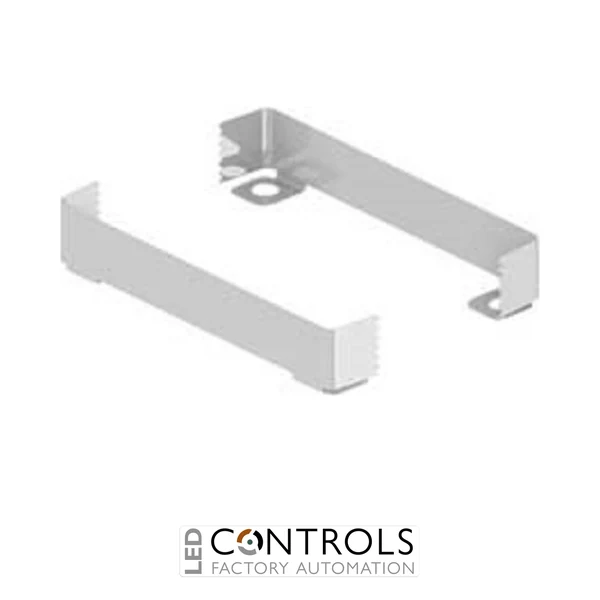

The Ilme CR24BPE is a pair of optional protective earth (PE) jumpers designed for compatible Ilme industrial connector assemblies in size 104.27. Installed beneath the connector inserts, the jumpers connect the PE plates of the inserts and provide a purpose-designed earthing accessory for suitable connector installations.
Manufactured from galvanised brass, the CR24BPE is intended for compatible Ilme T-TYPE insulating enclosures and COB series connector systems. The jumpers are specifically matched to the 104.27 format and can be used with a wide range of compatible Ilme multipole insert families.
The CR24BPE is supplied as a matched pair, and both jumpers must be installed together in the same housing or hood. Using both components is necessary to maintain the correct alignment of the connector insert within the enclosure; the individual jumpers are not intended to be used separately.
Key Advantages
- Purpose-designed PE earth jumper pair for Ilme industrial connectors.
- Designed specifically for size 104.27 connector inserts and enclosures.
- Suitable for compatible T-TYPE insulating enclosures and COB series systems.
- Connects the protective earth plates of the connector inserts.
- Manufactured from durable galvanised brass.
- Both jumpers work together to support correct insert alignment inside the enclosure.
Key Features
- Ilme CR24BPE protective earth accessory.
- Supplied as a pair of PE jumpers.
- Designed for 104.27 size inserts.
- Suitable for compatible Ilme T-TYPE and COB enclosure systems.
- Installed beneath the connector inserts.
- Connects the two insert PE plates.
- Galvanised brass construction.
- Both jumpers must be used together.
- Individual jumpers are not intended for separate use.
- Genuine Ilme industrial connector accessory.
Purpose-Designed Protective Earth Connection for Size 104.27
The Ilme CR24BPE jumpers can be mounted beneath compatible connector inserts to connect their protective earth plates. This provides an additional purpose-designed PE arrangement when using suitable size 104.27 inserts within compatible T-TYPE insulating or COB series enclosure systems.
Both supplied jumpers must be fitted within the same hood or housing to ensure proper alignment of the insert. The installer remains responsible for verifying the continuity of the male and female protective earth connections independently of the CR24BPE jumpers, ensuring that the completed connector installation meets the required protective earthing provisions.
Typical Applications
- Ilme T-TYPE insulating connector enclosures.
- Compatible Ilme COB series connector systems.
- Size 104.27 industrial connector assemblies.
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Machine building and OEM electrical installations.
- Industrial multipole connector assemblies requiring optional PE bridging.
- Connector installations requiring secure insert positioning and protective earth connection.
