Why Choose the ILME CR09AD2 Adaptor Plate?

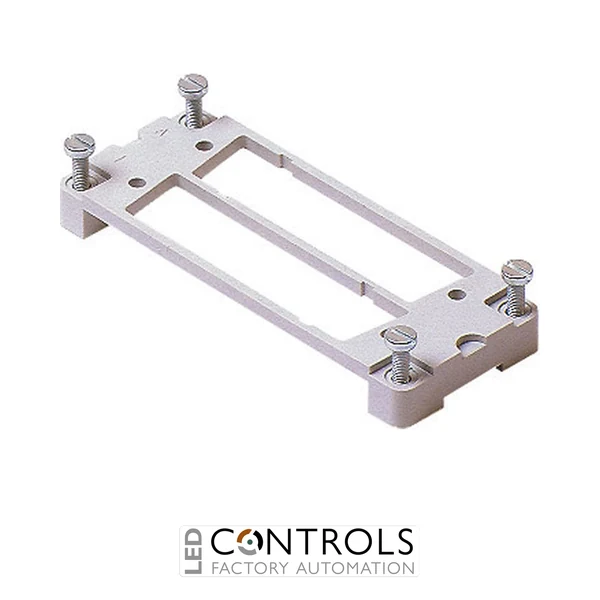

The ILME CR09AD2 is a purpose-designed industrial connector adaptor plate for integrating two 9-pole D-SUB inserts into compatible ILME multipole connector enclosures. Designed for the size 44.27 mounting format, it provides a practical way to incorporate two standard D-SUB interfaces within a robust industrial connector assembly.
The CR09AD2 forms part of ILME’s range of adaptor plates for D-SUB connectors compliant with IEC 60807-2. It is specifically configured for two 9-pole D-SUB inserts, allowing communication, programming, control or measurement connections to be conveniently incorporated into machinery and industrial equipment. The D-SUB inserts are installed separately and are not supplied with the adaptor plate.
With a 44 × 27 mm mounting centre and an overall plate dimension of approximately 51.5 × 34.5 mm, the CR09AD2 provides a compact solution for dual D-SUB connectivity. It is intended for installation in compatible ILME CH, CA, MH, MA and MF enclosure systems, helping create protected and serviceable interfaces for demanding industrial environments.
Key Advantages
- Purpose-designed adaptor plate for two 9-pole D-SUB inserts.
- Compatible with ILME size 44.27 connector enclosures.
- Allows two D-SUB interfaces to be incorporated into a single industrial connector assembly.
- Ideal for programming, communication, control and measurement connections.
- Compact format supports space-efficient machinery and control-panel designs.
- Designed for straightforward mounting using M3 fixing hardware.
Key Features
- ILME industrial connector accessory.
- Size 44.27 adaptor plate.
- Designed for two 9-pole D-SUB inserts.
- D-SUB inserts are not included.
- 44 × 27 mm mounting centres.
- Approximate overall dimensions of 51.5 × 34.5 mm.
- Mounting holes suitable for M3 fixing screws.
- Designed for compatible ILME industrial connector enclosures.
Flexible Dual D-SUB Integration for Industrial Connectors
Adaptor plates such as the ILME CR09AD2 allow standard D-SUB interfaces to be incorporated into heavy-duty industrial connector enclosures. This is particularly useful on machinery and equipment containing electronic control systems where external connections are required for programming, diagnostics, control, communication or measurement purposes.
The CR09AD2 accommodates two separate 9-pole D-SUB inserts within the compact size 44.27 format. This dual-interface arrangement helps reduce the number of separate connector locations required on a machine while providing a convenient and serviceable connection point within a compatible ILME enclosure.
Typical Applications
- Industrial machinery programming interfaces.
- Factory automation and production equipment.
- PLC and electronic control-system connections.
- Industrial communication and serial interfaces.
- Electrical control panels and machine cabinets.
- Measurement and diagnostic connections.
- OEM machinery and automation systems.
