Why Choose the ILME CRFCXD Female Coding Pin for MIXO Inserts?

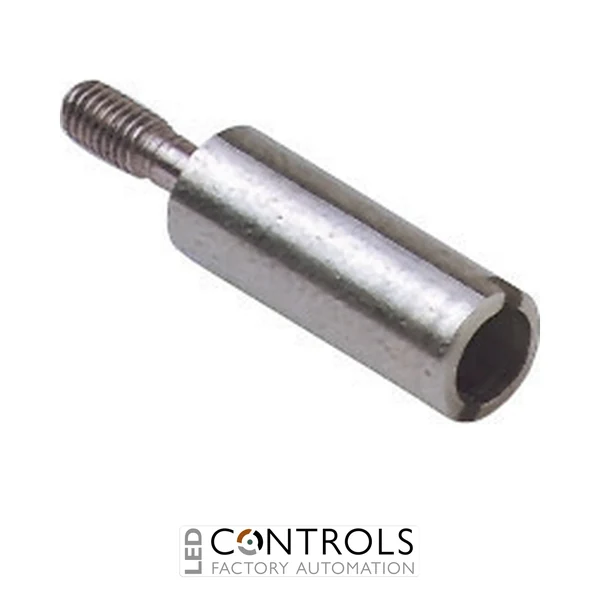

The ILME CRFCXD, also designated CRF CX D, is a female coding and guiding pin for ILME MIXO modular inserts. It is designed to mechanically differentiate compatible connector assemblies, helping prevent incorrect cross-connection where several similar industrial connectors are installed close together.
Manufactured from zinc-plated iron, the CRFCXD provides a durable metal coding component for MIXO modular connector systems. It is the zinc-plated alternative to the stainless-steel CRFCX female coding pin and is designed specifically for the dimensions and mounting arrangement of MIXO modular frames.
Mechanical coding is particularly valuable in complex machinery and automation installations containing multiple identical connector enclosures serving different electrical functions. Used with the appropriate MIXO coding components, the CRFCXD provides both coding and guidance during connector mating, supporting accurate and repeatable connection.
Key Advantages
- Designed specifically for ILME MIXO modular inserts.
- Female coding and guiding configuration.
- Manufactured from durable zinc-plated iron.
- Helps prevent cross-connection of identical connector assemblies.
- Provides mechanical guidance during connector mating.
- Suitable for machinery containing multiple connectors with different functions.
- Dedicated MIXO design is suited to the modular frame mounting arrangement.
- Original ILME accessory for industrial modular connector systems.
Key Features
- ILME coding pin.
- Designed for the MIXO modular connector range.
- Female coding configuration.
- Zinc-plated iron construction.
- Combines mechanical coding with a guiding function.
- Used to distinguish otherwise identical connector combinations.
- Designed to replace the appropriate fastening screw in compatible MIXO assemblies.
- Corresponding zinc-plated male guiding pin available as CRMCXD.
- Stainless-steel female alternative available as CRFCX.
- Manufacturer part number CRFCXD.
Reliable Mechanical Coding for MIXO Connector Systems
Industrial equipment can contain several identical connector housings positioned close together while each connector serves a different power, control or signal function. Mechanical coding provides a physical means of differentiating these connector combinations, reducing the possibility of an incorrect connector being mated during installation, servicing or machine changeover.
The ILME CRFCXD provides the female zinc-plated coding and guiding element for compatible MIXO assemblies. MIXO-specific metal coding pins are designed for the modular frame system and, when combined with the appropriate mating coding arrangement, provide a robust solution for creating mechanically differentiated connector combinations.
Typical Applications
- ILME MIXO modular connector assemblies.
- Mechanical coding of identical industrial connectors.
- Factory automation equipment.
- Industrial machinery and machine tools.
- Robotics and automated production systems.
- Material handling and conveyor equipment.
- Electrical control and distribution systems.
- OEM machinery with multiple connector interfaces.
