Why Choose the ILME CRM CX D Male Coding Pin?

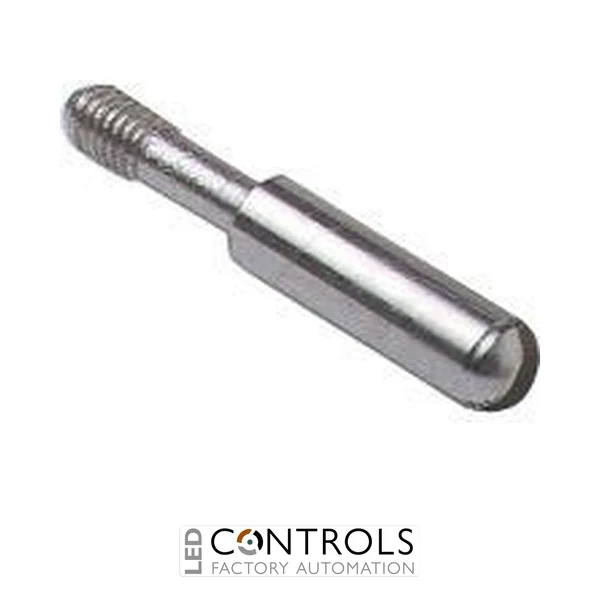

The ILME CRM CX D is a male coding pin for ILME MIXO modular inserts, designed to provide mechanical coding and additional mating guidance within compatible industrial connector assemblies. By mechanically differentiating connector combinations, it helps reduce the possibility of incorrectly mating similar connectors installed on the same machine or system.
Manufactured from zinc-plated iron, the CRM CX D is designed for robust industrial service and forms part of ILME's range of MIXO coding accessories. Its male configuration is used with the appropriate corresponding female coding arrangement to establish the required mechanical polarisation between mating connector halves.
The CRM CX D is particularly useful in modular machinery, automation systems and control equipment containing several similar MIXO connector assemblies. Mechanical coding provides an additional physical method of identifying the correct mating connector while leaving the electrical configuration of the installed MIXO modules unchanged.
Key Advantages
- Purpose-designed male coding pin for ILME MIXO inserts.
- Provides mechanical coding to help prevent incorrect connector mating.
- Supports additional mating guidance and polarisation.
- Robust zinc-plated iron construction.
- Useful where several similar MIXO connector assemblies are installed together.
- Mechanical coding operates independently of the connector's electrical contacts.
Key Features
- ILME MIXO connector accessory.
- Male coding pin / keying component.
- Designed specifically for MIXO inserts.
- Male connection configuration.
- Manufactured from zinc-plated iron.
- Provides mechanical connector coding and polarisation.
- Helps differentiate otherwise similar connector assemblies.
- Suitable for machinery, automation and industrial control applications.
Reliable Mechanical Coding for MIXO Connector Systems
Industrial machines can contain numerous modular connectors with similar external dimensions and module arrangements. Mechanical coding provides a physical means of differentiating these interfaces, helping ensure that connector halves are matched according to the intended coding arrangement rather than appearance alone.
The ILME CRM CX D provides the male coding component for compatible MIXO assemblies. Its zinc-plated iron construction makes it suitable for industrial connector applications, while the corresponding coding arrangement provides both mechanical polarisation and additional guidance as the mating connector halves are brought together.
Typical Applications
- ILME MIXO modular connector assemblies.
- Mechanical coding of similar industrial connectors.
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Modular production and processing machinery.
- Electrical control panels and machine systems.
- Material handling and conveyor equipment.
- OEM equipment requiring differentiated connector interfaces.
