Why Choose the Ilme CRZ06 24 Pole to 6 Pole Reducer Plate?

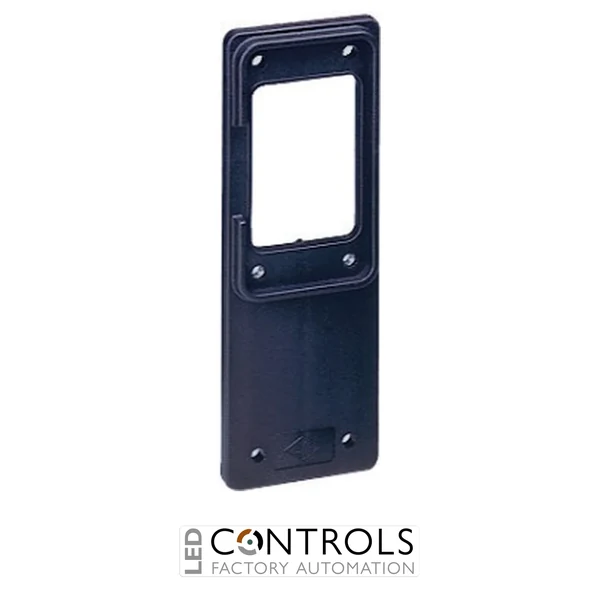

The Ilme CRZ06 is a purpose-designed reducer plate for industrial multipole connector enclosures, allowing a smaller size 44.27 bulkhead mounting housing to be installed in an existing size 104.27 mounting footprint. This provides a practical solution for adapting installations originally configured for larger 24-pole connector housings to accommodate compact 6-pole connector arrangements.
Part of the Ilme C-TYPE connector accessory range, the CRZ06 is particularly useful when machinery or control equipment is being modified, upgraded or refurbished. Rather than altering an existing panel cut-out, the reducer plate provides the mechanical interface required to mount the smaller enclosure securely within the larger footprint.
The CRZ06 is manufactured from durable plastic and incorporates a gasket for bulkhead mounting applications. With overall dimensions of approximately 152 × 55 mm, the plate adapts a 104.27 size mounting footprint to a 44.27 size housing while supporting an assembled protection rating of up to IP65.
Key Advantages
- Adapts a size 104.27 mounting footprint to a size 44.27 enclosure.
- Ideal for converting installations from 24-pole to 6-pole connector housing sizes.
- Avoids unnecessary modification of existing panel cut-outs during equipment upgrades.
- Supplied with a gasket for bulkhead mounting applications.
- Supports an assembled IP65 protection rating when correctly installed with compatible equipment.
- Durable plastic construction with UL 94 V-0 flammability classification.
Key Features
- Ilme C-TYPE reducer plate.
- 104.27 to 44.27 size conversion.
- Suitable for adapting 24-pole mounting footprints for smaller 6-pole housings.
- Designed for bulkhead mounting housings.
- Integrated gasket for secure installation.
- Plastic adapter plate construction.
- Rectangular cut-out with a single opening.
- Approximate dimensions of 152 × 55 mm.
- Assembled protection rating up to IP65.
- Insulating material rated UL 94 V-0.
Practical Connector Size Adaptation for Existing Panel Cut-Outs
Industrial machinery is frequently upgraded during its operating life, and changes to electrical circuits can reduce the number of connector poles required. Where an existing panel has already been prepared for a large size 104.27 connector housing, replacing it with a smaller housing would normally require mechanical modification or fabrication of a new mounting interface.
The Ilme CRZ06 provides a straightforward solution by covering the existing 104.27 mounting footprint and providing the interface for a 44.27 bulkhead mounting housing. This allows existing machinery and panels to be adapted for smaller connector configurations while retaining a professional installation and, with compatible components correctly assembled, protection up to IP65.
Typical Applications
- Conversion of 24-pole connector mounting footprints for 6-pole housings.
- Ilme C-TYPE industrial connector installations.
- Electrical control panels and cabinets.
- Industrial machinery refurbishment and modification.
- Factory automation and production equipment.
- Retrofit applications using existing 104.27 panel cut-outs.
