Why Choose the Ilme CRZ10 24 Pole to 10 Pole Reducer Plate?

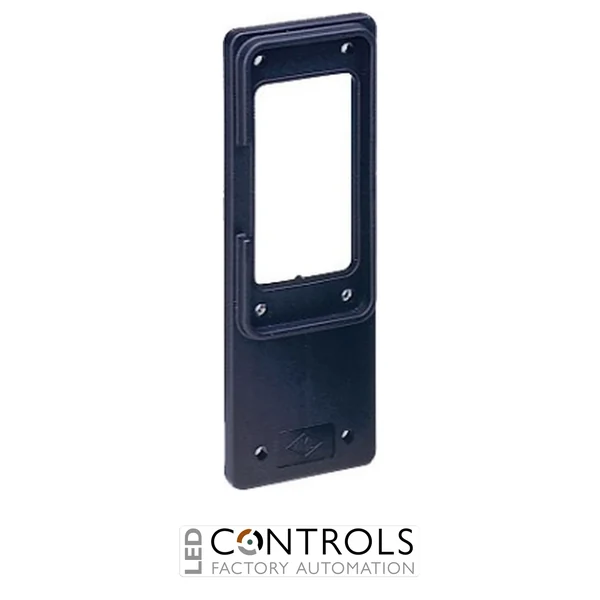

The Ilme CRZ10 is a purpose-designed reducer plate for industrial multipole connector enclosures, allowing a smaller size 57.27 bulkhead mounting housing to be installed in an existing size 104.27 mounting footprint. It provides a practical solution for adapting installations originally configured for larger 24-pole connector housings to accommodate a more compact 10-pole connector arrangement.
Part of the Ilme industrial connector accessory range, the CRZ10 is particularly useful when machinery, control panels or production equipment are being modified, upgraded or refurbished. Instead of altering an existing panel opening, the reducer plate provides a mechanical interface between the larger mounting footprint and the smaller connector housing.
The CRZ10 provides a 104.27 to 57.27 size conversion, commonly corresponding to a change from a 24-pole enclosure format to a 10-pole format. Its adapter-plate design makes it a useful component for industrial retrofit projects where existing panel preparation needs to be retained while the connector configuration is reduced.
Key Advantages
- Adapts a size 104.27 mounting footprint to a size 57.27 enclosure.
- Ideal for converting installations from 24-pole to 10-pole connector housing sizes.
- Helps avoid unnecessary modification of existing panel cut-outs.
- Provides a practical mechanical interface for equipment upgrades and retrofits.
- Suitable for industrial connector, machinery and control-panel applications.
- Allows existing installations to accommodate a smaller connector enclosure format.
Key Features
- Ilme industrial connector reducer plate.
- 104.27 to 57.27 size conversion.
- Suitable for adapting a 24-pole mounting footprint for a 10-pole housing.
- Designed for industrial multipole connector enclosure installations.
- Rectangular adapter-plate configuration.
- Suitable for bulkhead and panel-mounted connector applications.
- Useful for machinery refurbishment and connector-system modifications.
- Designed for integration with compatible Ilme connector housings.
Practical Connector Size Adaptation for Existing Panel Cut-Outs
Industrial machinery and control systems are frequently modified during their operating life, and changes to electrical circuits can result in fewer connector poles being required. Where an existing panel has already been prepared for a large size 104.27 connector housing, installing a smaller enclosure can otherwise require additional fabrication or modification of the mounting area.
The Ilme CRZ10 provides a straightforward solution by adapting the existing 104.27 mounting footprint for a smaller 57.27 connector housing. This makes it possible to move from a typical 24-pole enclosure format to a 10-pole format while retaining the original mounting location, making the CRZ10 particularly useful for maintenance, refurbishment and machinery upgrade projects.
Typical Applications
- Conversion of 24-pole connector mounting footprints for 10-pole housings.
- Ilme industrial multipole connector installations.
- Electrical control panels and cabinets.
- Industrial machinery refurbishment and modification.
- Factory automation and production equipment.
- Retrofit applications using existing 104.27 mounting footprints.
