Why Choose the Ilme CSAHF10 SQUICH® Female Insert?

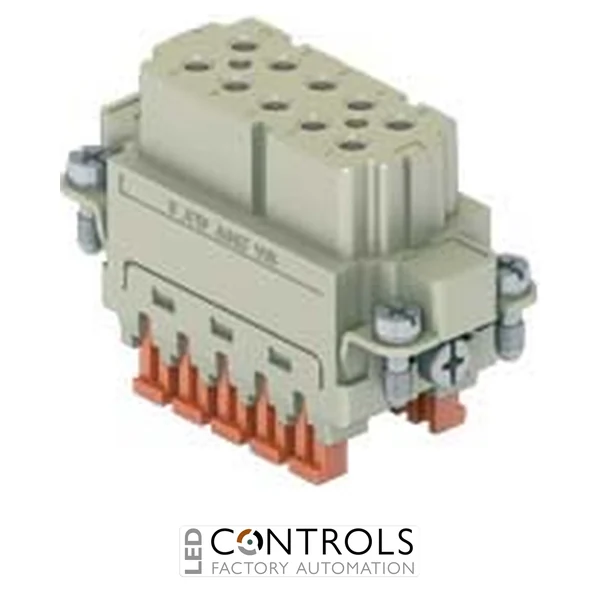

The Ilme CSAHF10 is a 10-pole + PE female connector insert from the Ilme CSAH series, featuring SQUICH® spring terminal connection with actuator buttons for fast conductor termination without dedicated wiring tools. Rated at 16 A and 250 V under EN 61984 characteristics, it is designed for dependable multipole power and control connections in industrial machinery and automation equipment.
The CSAHF10 uses Ilme's SQUICH® spring connection technology, allowing stripped conductors to be inserted into the terminal and secured by pressing the individual actuator button. This eliminates conventional terminal tightening during wiring while providing a vibration-resistant spring connection, helping reduce installation and maintenance time in control panels and machine-building applications.
Designed in the compact 49.16 size, the CSAHF10 accepts conductor cross-sections from 0.14–2.5 mm² and provides 10 female poles plus protective earth (PE). Its self-extinguishing thermoplastic construction, silver-plated contacts and operating temperature range of -40 °C to +125 °C make it suitable for demanding industrial connector assemblies.
Key Advantages
- 10 poles + PE for multipole industrial electrical connections.
- 16 A rated current for power and control applications.
- SQUICH® spring terminals with actuator buttons enable connection without dedicated wiring tools.
- Accepts conductors from 0.14–2.5 mm² (AWG 26–14).
- Compact 49.16 insert size saves space in compatible connector assemblies.
- Silver-plated contacts provide dependable electrical connectivity.
- Mechanical durability of at least 500 mating cycles.
Key Features
- Ilme CSAH SQUICH® series.
- Female insert with female contacts.
- 10 poles + protective earth (PE).
- 16 A, 250 V, 4 kV, pollution degree 3 characteristics according to EN 61984.
- Alternative EN 61984 characteristics: 16 A, 400 V, 4 kV, pollution degree 2.
- 600 V rated voltage according to UL/CSA.
- SQUICH® spring terminal connection with individual actuator buttons.
- Conductor capacity of 0.14–2.5 mm² / AWG 26–14.
- Self-extinguishing thermoplastic resin construction rated UL 94 V-0.
- Operating temperature range of -40 °C to +125 °C.
Fast SQUICH® Spring Connection for Industrial Wiring
Ilme SQUICH® technology simplifies connector wiring by combining spring terminals with integrated actuator buttons. The stripped conductor is inserted deeply into its terminal seat and the actuator is pressed to close the spring connection, eliminating the repetitive screw tightening associated with conventional screw-terminal inserts.
The CSAHF10 combines this rapid termination system with a compact 10-pole + PE format. Conductors can also be released for maintenance by operating the actuator with a suitable flat-blade screwdriver, making the insert particularly useful for machine builders and industrial installers who require fast initial wiring together with straightforward future servicing.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Packaging and materials-handling machinery.
- Electrical control and distribution systems.
- Motor, sensor and actuator connections.
- OEM machine-building and modular equipment.
