Why Choose the ILME CSAHM16 SQUICH Male Insert?

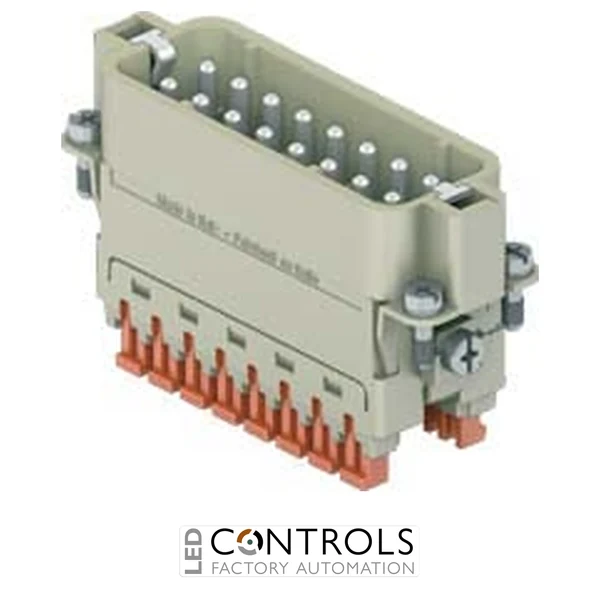

The ILME CSAHM16, also designated CSAHM 16, is a 16-pole plus earth male connector insert from the ILME CSAH series, designed for reliable industrial power and control connections. Featuring ILME's SQUICH® spring-clamp connection technology, the insert enables conductors to be terminated without conventional screw terminals, helping simplify and accelerate connector assembly.
The CSAHM16 combines 16 male poles plus protective earth (16+PE) with a rated current of 16 A and rated voltage of 600 V. Its SQUICH® connection system accepts conductors from 0.14–2.5 mm² (26–14 AWG), making the insert suitable for a broad range of industrial wiring applications.
Designed in size 66.16, the CSAHM16 uses silver-plated contacts and a robust polycarbonate insulating body. With an operating temperature range of -40 to +125 °C and a mechanical endurance of up to 500 mating cycles, it provides a dependable connection solution for machinery, automation equipment and industrial control systems.
Key Advantages
- 16-pole plus protective earth male insert for industrial connector systems.
- Innovative SQUICH® spring-clamp connection simplifies conductor termination.
- 16 A rated current for industrial power and control applications.
- 600 V rated voltage for compatible electrical systems.
- Accepts conductor sizes from 0.14–2.5 mm² (26–14 AWG).
- Silver-plated contacts provide reliable electrical connection performance.
Key Features
- ILME CSAH series male contact insert.
- 16 poles plus protective earth (16+PE).
- SQUICH® spring-clamp termination.
- 16 A rated current.
- 600 V rated voltage.
- 0.14–2.5 mm² conductor range.
- Compatible with 26–14 AWG conductors.
- Silver-plated contacts.
- Durable polycarbonate insulating body.
- Mechanical endurance of up to 500 mating cycles.
Fast and Reliable SQUICH® Connection Technology
ILME SQUICH® technology uses spring-clamp terminals to provide fast conductor termination without conventional terminal screws. The spring connection maintains consistent contact pressure while simplifying wiring, making it particularly useful for industrial connector assemblies where installation speed and dependable electrical connections are important.
With 16 contacts plus protective earth, the CSAHM16 provides a compact interface for multiple power, control and signal circuits. Its wide conductor range and robust contact system make it well suited to machinery and automation applications requiring repeated, reliable connector mating.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Industrial control and power connections.
- Motor and machinery interfaces.
- Material handling and conveyor systems.
- Heavy-duty multipole connector assemblies.
