Why Choose the Ilme CSEF06 Female Insert?

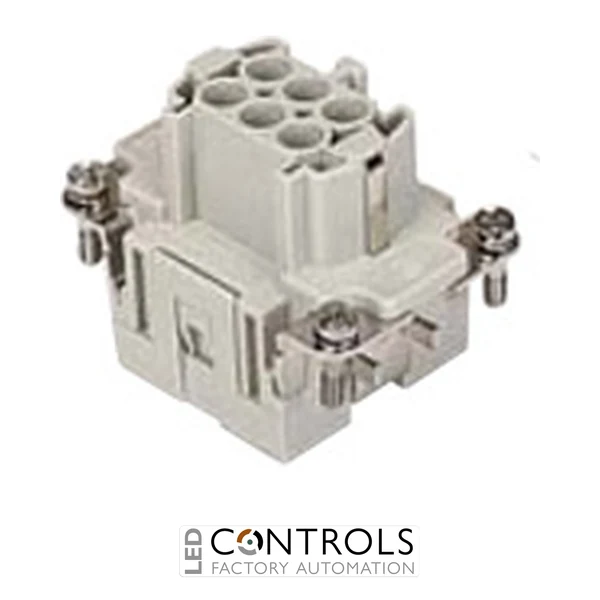

The Ilme CSEF06 is a high-quality 6-pole plus earth female connector insert designed for reliable power and control connections in industrial machinery and automation systems. Part of the Ilme CSE series, this size 44.27 insert combines a compact multipole format with spring terminal technology for secure conductor termination.
Designed for a rated current of 16 A and voltage of 500 V, the CSEF06 provides six electrical poles plus a protective earth connection. Its spring terminal connection allows conductors to be securely terminated without relying on conventional screw-terminal clamping, making it particularly suitable for industrial installations subject to vibration and demanding operating conditions.
The insert uses durable polycarbonate insulation and turned silver-plated contacts for dependable electrical performance. Its 44.27 size is designed for installation within compatible Ilme industrial connector housings, allowing the completed connector assembly to provide robust environmental protection for machinery, control panels and production equipment.
Key Advantages
- Compact 6-pole plus protective earth female insert for industrial connectors.
- 16 A rated current for power and control applications.
- 500 V rated voltage for demanding industrial electrical systems.
- Spring terminal connection provides secure and reliable conductor termination.
- Silver-plated contacts provide dependable electrical conductivity.
- Wide -40 °C to +125 °C operating temperature range for industrial environments.
Key Features
- Ilme CSE series female insert.
- 6 poles + PE configuration.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Spring terminal connection.
- 0.14–2.50 mm² conductor capacity.
- AWG 26–14 conductor range.
- Turned silver-plated contacts.
- Durable polycarbonate insulating body.
- Size 44.27 for compatible industrial connector enclosures.
- Designed for at least 500 mating cycles.
Industrial multipole connectors provide a convenient way to combine several electrical circuits within a single robust connector assembly. The Ilme CSEF06 provides six female electrical contacts plus protective earth, allowing power and control conductors to be connected through one compact interface while simplifying equipment installation, maintenance and replacement.
The spring terminal system maintains secure conductor contact without conventional screw-terminal clamping. Combined with silver-plated contacts, high insulation resistance and a wide operating temperature range, this makes the CSEF06 well suited to industrial machinery and automation applications where dependable connections and resistance to demanding operating conditions are essential.
Typical Applications
- Industrial machinery and factory automation.
- Motor and equipment power connections.
- Electrical control panels and cabinets.
- Conveyor and material handling systems.
- Production and packaging machinery.
- OEM equipment and multipole connector assemblies.
