Why Choose the Ilme CSEF10 Female Insert?

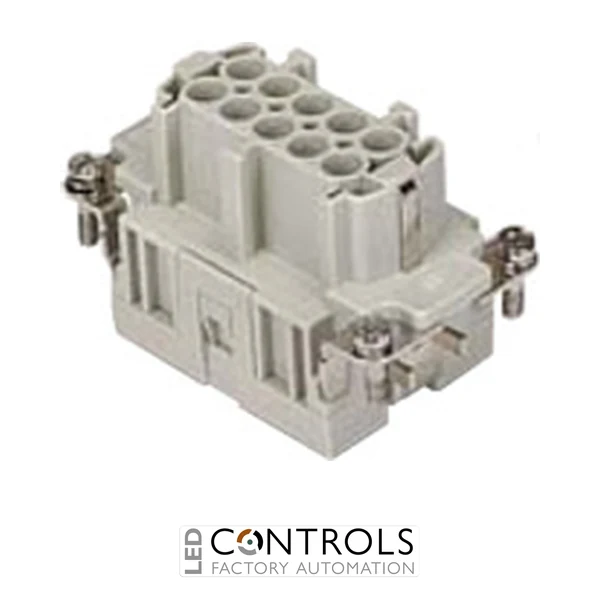

The Ilme CSEF10 is a high-quality 10-pole plus earth female connector insert designed for reliable power and control connections in industrial machinery, automation equipment and electrical systems. Part of the Ilme CSE series, this size 57.27 insert combines a compact multipole format with spring terminal technology for secure and efficient conductor termination.
Designed for a rated current of 16 A and a rated voltage of 500 V, the CSEF10 provides ten electrical poles plus a protective earth connection. Its spring terminal connection supports conductors from 0.14–2.50 mm², providing dependable electrical contact without conventional screw-terminal clamping and making it well suited to machinery exposed to vibration and demanding operating conditions.
The CSEF10 features a durable polycarbonate insulating body and turned silver-plated contacts for dependable electrical performance. The size 57.27 insert can be installed in compatible Ilme connector enclosures, where the completed assembly can achieve high levels of environmental protection for industrial power and control connections.
Key Advantages
- Compact 10-pole plus protective earth female insert for industrial connector systems.
- 16 A rated current suitable for industrial power and control circuits.
- 500 V rated voltage for demanding electrical applications.
- Spring terminal connection provides secure and efficient conductor termination.
- Accepts conductors from 0.14–2.50 mm² or AWG 26–14.
- Turned silver-plated contacts provide reliable electrical conductivity.
- Wide -40 °C to +125 °C operating temperature range.
- Designed for at least 500 mating cycles for dependable long-term use.
Key Features
- Ilme CSE series female insert.
- 10 poles + PE configuration.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Spring terminal connection.
- 0.14–2.50 mm² conductor capacity.
- AWG 26–14 conductor range.
- Turned silver-plated contacts.
- Polycarbonate insulating body in RAL 7032 grey.
- Size 57.27 for compatible industrial connector enclosures.
- IP20 protection without an enclosure.
- Compatible enclosures can provide IP65, IP66, IP68 or IP69 protection depending on enclosure type and installation.
Industrial multipole connectors allow several electrical circuits to be combined within a single robust and detachable connector assembly. The Ilme CSEF10 provides ten female electrical contacts plus protective earth, allowing power and control conductors to be connected through one compact interface while simplifying machinery installation, servicing and equipment replacement.
The spring terminal system provides consistent conductor clamping without conventional screw-terminal connections. Combined with silver-plated contacts, high insulation resistance and a wide operating temperature range, the CSEF10 provides a dependable solution for industrial machinery and automation systems where reliable electrical connections are essential.
Typical Applications
- Industrial machinery and factory automation.
- Motor, power and control connections.
- Electrical control panels and cabinets.
- Conveyor and material handling systems.
- Packaging and production machinery.
- Process control equipment.
- OEM equipment and multipole connector assemblies.
