Why Choose the Ilme CSEF16N Female 16 Pole + Earth Insert?

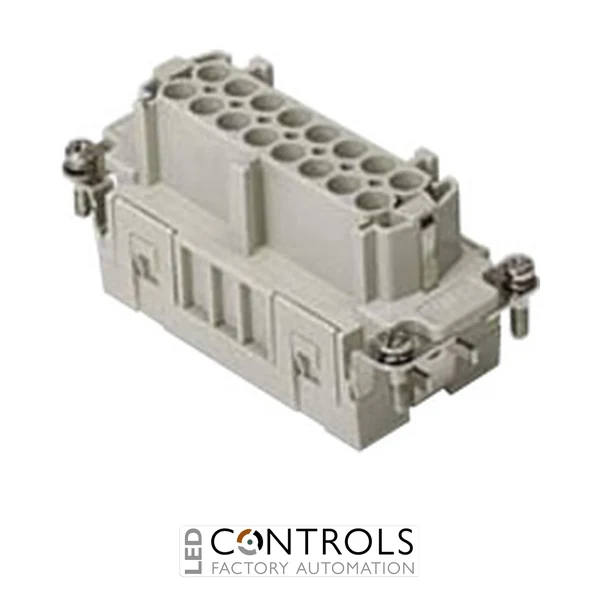

The Ilme CSEF16N, manufacturer reference CSEF 16 N, is a female multipole connector insert with 16 poles plus protective earth, numbered 17–32. Part of the Ilme CSE series, it uses spring terminal connections to provide secure conductor termination for industrial machinery, automation equipment and detachable electrical connections.
Rated at 16 A and 500 V, the CSEF16N has a rated impulse withstand voltage of 6 kV and pollution degree 3. The insert accepts conductors from 0.14–2.5 mm² (26–14 AWG) and incorporates turned, silver-plated female contacts for dependable electrical performance.
The CSEF16N is designed for the extended size 77.62 configuration and carries contact numbering 17–32, allowing it to complement the corresponding 1–16 insert in higher-pole connector arrangements. Its polycarbonate insulating body, wide operating temperature range and minimum 500 mating-cycle durability make it suitable for demanding industrial connector systems.
Key Advantages
- 16 poles plus protective earth with contact numbering 17–32.
- 16 A, 500 V rating for industrial power and control connections.
- Spring terminal connection provides secure and efficient conductor termination.
- Accepts conductors from 0.14–2.5 mm².
- Turned silver-plated female contacts support dependable conductivity.
- Designed for at least 500 mating cycles in industrial applications.
Key Features
- Ilme CSE series female insert.
- 16 poles + PE, numbered 17–32.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Spring terminal connection.
- Conductor capacity of 0.14–2.5 mm² / 26–14 AWG.
- Turned silver-plated contacts.
- Size 77.62 insert configuration.
- Polycarbonate insulating body in RAL 7032 grey.
Reliable Spring Terminal Connectivity for Industrial Machinery
Spring terminal technology maintains conductor clamping force without requiring a conventional screw-clamp termination. In the Ilme CSEF16N, this provides an efficient and dependable wiring method for industrial connector assemblies while accommodating conductor sizes from 0.14–2.5 mm².
The CSEF16N carries positions 17–32 and is intended for size 77.62 configurations where additional poles are required beyond the standard 1–16 arrangement. When combined with compatible Ilme connector components, it helps create robust detachable interfaces for machinery, production equipment and modular automation systems.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Electrical control and power connections.
- Motor, actuator and sensor wiring systems.
- Material handling and conveyor equipment.
- Multipole connector arrangements requiring positions 17–32.
