Why Choose the Ilme CSEM06 Male Insert?

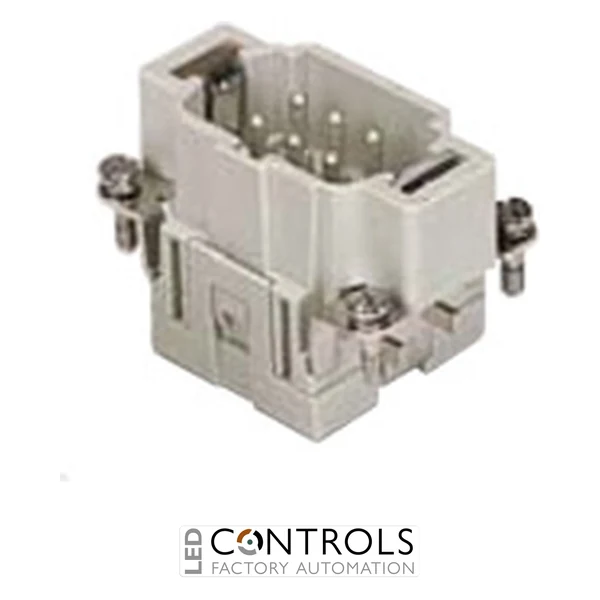

The Ilme CSEM06 is a CSE series male connector insert featuring 6 poles plus protective earth (6P+PE) and spring terminal connections. Rated at 16 A and 500 V, it is designed for reliable power and control connections in heavy-duty industrial connector assemblies.
The spring terminal system accepts conductors from 0.14–2.5 mm² (AWG 26–14), providing secure conductor termination without conventional screw terminals. Turned silver-plated contacts provide low contact resistance, while the polycarbonate insulating body is rated UL 94 V-0 for self-extinguishing performance.
Designed for size 44.27 Ilme enclosures, the CSEM06 offers a rated impulse withstand voltage of 6 kV, pollution degree 3 and a mechanical life of at least 500 mating cycles. Its operating temperature range of -40 °C to +125 °C makes it suitable for demanding machinery, automation and industrial electrical installations.
Key Advantages
- 6 poles plus protective earth (6P+PE) for industrial multipole connections.
- Rated for 16 A at 500 V.
- Spring terminal connection provides secure and convenient conductor termination.
- Accepts conductors from 0.14–2.5 mm² (AWG 26–14).
- Turned silver-plated contacts provide dependable electrical performance.
- Rated for at least 500 mating cycles.
- Wide -40 °C to +125 °C operating temperature range.
Key Features
- Ilme CSE series male insert.
- Male connection with 6P+PE configuration.
- Spring terminal connection.
- Size 44.27 connector format.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Pollution degree 3.
- Polycarbonate insulating body in RAL 7032 grey.
- UL 94 V-0 flammability rating.
Reliable Spring-Terminal Connection for Industrial Systems
Spring terminal technology provides consistent conductor clamping without relying on screw tightening torque. This makes the CSEM06 particularly suitable for industrial installations where fast wiring, dependable electrical contact and resistance to vibration are important considerations.
Combined with its 16 A rating, 500 V operating voltage and robust CSE-series construction, the Ilme CSEM06 provides a dependable male connection interface for machinery, automation, control and power distribution applications using compatible size 44.27 housings.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and robotic systems.
- Motor and actuator connections.
- Electrical control panels and cabinets.
- Production and processing equipment.
- Heavy-duty multipole connector assemblies.
- Industrial power and control wiring requiring spring-terminal connections.
