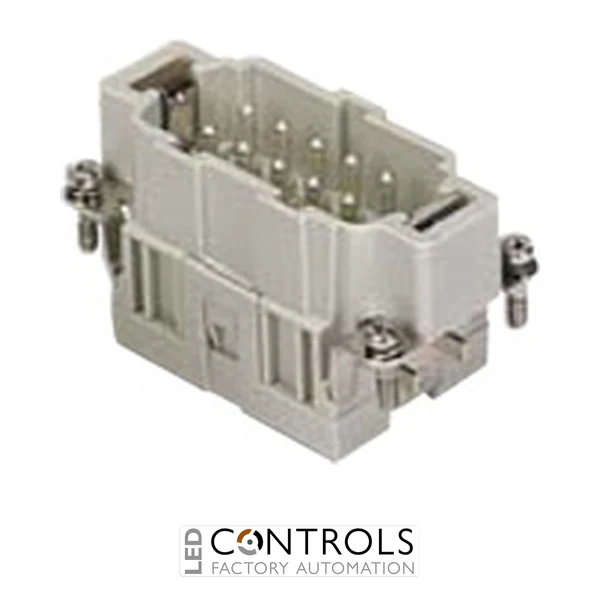

Why Choose the Ilme CSEM10 Male Insert?
The Ilme CSEM10 is a CSE series male connector insert featuring 10 poles plus protective earth (10P+PE) with spring terminal connections. Rated at 16 A and 500 V, it is designed for dependable power and control connections in heavy-duty industrial connector assemblies.
The spring terminal connection accepts conductors from 0.14–2.5 mm² (AWG 26–14), providing secure conductor termination without conventional screw terminals. Silver-plated contacts support reliable electrical performance, while the polycarbonate insulating body has a UL 94 V-0 flammability rating.
Designed for size 57.27 Ilme connector enclosures, the CSEM10 has a rated impulse withstand voltage of 6 kV, pollution degree 3 and a mechanical durability of at least 500 mating cycles. Its operating temperature range of -40 °C to +125 °C makes it suitable for demanding machinery, automation and industrial electrical installations.
Key Advantages
- 10 poles plus protective earth (10P+PE) for multipole industrial connections.
- Rated at 16 A and 500 V.
- Spring terminal connection provides secure conductor termination.
- Accepts conductors from 0.14–2.5 mm² (AWG 26–14).
- Silver-plated contacts support dependable electrical performance.
- Rated for at least 500 mating cycles.
- Wide operating temperature range from -40 °C to +125 °C.
Key Features
- Ilme CSE series connector insert.
- Male connection with 10P+PE configuration.
- Spring terminal connection.
- Size 57.27 connector format.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Pollution degree 3.
- Polycarbonate insulating body.
- UL 94 V-0 flammability rating.
Reliable Spring-Terminal Connections for Industrial Systems
Spring terminal technology provides consistent conductor clamping without depending on screw-tightening torque. This makes the CSEM10 particularly useful for industrial installations where efficient wiring, dependable electrical contact and resistance to vibration are important requirements.
Combined with its 16 A current rating, 500 V rated voltage and 10P+PE configuration, the Ilme CSEM10 provides a robust male connection interface for machinery, automation, control and power applications using compatible size 57.27 connector enclosures.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and robotic equipment.
- Motor, actuator and equipment connections.
- Electrical control panels and cabinets.
- Production and processing machinery.
- Heavy-duty multipole connector assemblies.
- Industrial power and control wiring using spring-terminal connections.
