Why Choose the Ilme CSEM16N Male Spring-Terminal Insert?

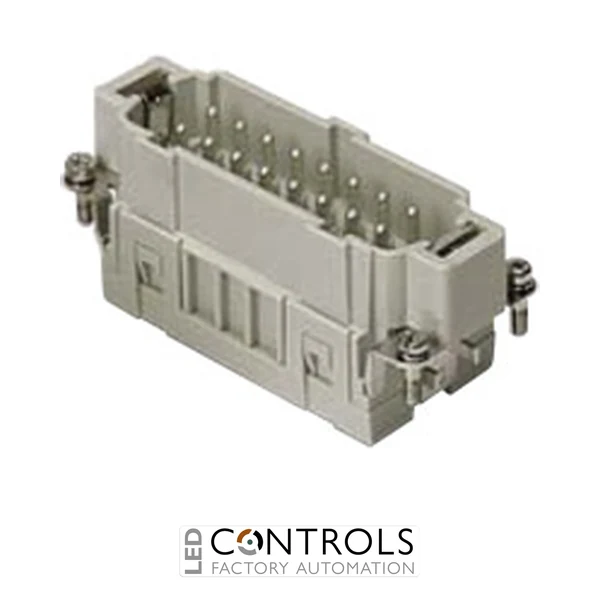

The Ilme CSEM16N is a 16-pole + PE male industrial connector insert designed for dependable multipole electrical connections in machinery, automation and control systems. Part of Ilme's spring-terminal connector range, it combines a 16 A rated current with secure spring-clamp conductor termination for efficient assembly and reliable service in industrial environments.
The CSEM16N uses spring terminal technology to maintain consistent clamping pressure on connected conductors. This avoids the need for conventional screw-terminal tightening and helps provide a stable electrical connection in applications exposed to machinery vibration, repeated operating cycles and routine maintenance.
Providing 16 male poles plus protective earth (PE), the CSEM16N is suitable for carrying multiple power, control and auxiliary circuits through a single detachable industrial connector. When combined with the corresponding female insert and a compatible Ilme hood or housing, it forms a robust connection system for machine building and factory automation.
Key Advantages
- 16 poles + PE for high-density industrial multipole connections.
- 16 A rated current suitable for power and control circuits.
- Spring terminal connection provides consistent conductor clamping pressure.
- Eliminates repetitive tightening of conventional terminal screws.
- Designed for reliable operation in machinery and automation environments.
- Male insert format for mating with the corresponding compatible female insert.
- Supports modular and detachable electrical connections for easier equipment servicing.
Key Features
- Ilme industrial multipole connector insert.
- Male connection.
- 16 poles + protective earth (PE).
- 16 A rated current.
- Spring terminal conductor connection.
- Integrated protective-earth connection.
- Designed for compatible Ilme heavy-duty connector enclosures.
- Suitable for industrial power, control and auxiliary wiring.
- Serviceable detachable connection for machinery and automation equipment.
Reliable Spring-Terminal Connections for Industrial Machinery
Spring-terminal connections use a spring mechanism to apply continuous pressure to the conductor, helping maintain a stable electrical interface without relying on a screw to provide the clamping force. This connection principle is particularly useful in industrial equipment where vibration and repeated operating cycles demand dependable conductor retention.
The Ilme CSEM16N combines this termination method with a 16-pole + PE male configuration, allowing numerous circuits to be connected through one multipole interface. Used with compatible Ilme connector components, it provides a practical solution for modular machinery, production equipment and electrical systems that require robust connections which can be disconnected for installation or servicing.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Packaging and materials-handling systems.
- Electrical control and distribution equipment.
- Motor, actuator and auxiliary circuit connections.
- OEM machinery and modular industrial equipment.
