Why Choose the ILME CSHF10 SQUICH Female Insert?

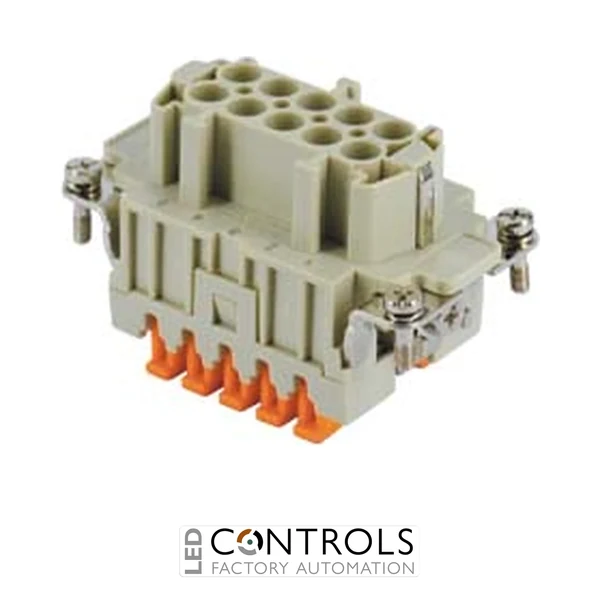

The ILME CSHF10, also designated CSHF 10, is a 10-pole plus protective earth female connector insert from the ILME CSH series. Designed for heavy-duty industrial connector systems, it features ILME's SQUICH® spring-terminal connection technology, enabling fast conductor termination without conventional terminal screws.
The CSHF10 is rated at 16 A and 500 V, with a 6 kV rated impulse withstand voltage and pollution degree 3. Its SQUICH® terminals accept conductors from 0.14–2.5 mm² (26–14 AWG), providing a versatile connection solution for industrial power, control and automation wiring.
Designed in ILME size 57.27, the CSHF10 incorporates turned silver-plated female contacts within a robust polycarbonate insulating body. Its spring-clamp connection is resistant to vibration and maintenance-free, while the insert is designed for up to 500 mating cycles and operation across a wide -40 to +125 °C temperature range.
Key Advantages
- 10-pole plus protective earth female insert for heavy-duty industrial connectors.
- Fast SQUICH® spring-terminal connection without tools.
- 16 A, 500 V rating for industrial power and control applications.
- Accepts conductors from 0.14–2.5 mm² (26–14 AWG).
- Vibration-resistant spring termination requires no routine terminal tightening.
- Silver-plated contacts provide dependable electrical connection performance.
Key Features
- ILME CSH series female contact insert.
- 10 poles plus protective earth (10+PE).
- SQUICH® spring-clamp termination.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Pollution degree 3.
- 0.14–2.5 mm² conductor range.
- Compatible with 26–14 AWG conductors.
- Turned silver-plated contacts.
- Polycarbonate insulating body with UL 94 V-0 flammability classification.
- Designed for size 57.27 connector housings.
Fast and Reliable SQUICH® Connection Technology
ILME SQUICH® technology uses spring-clamp terminals to provide rapid conductor termination without conventional terminal screws. The conductor is inserted into the terminal and secured by the spring mechanism, providing consistent contact pressure and a connection that is resistant to vibration while reducing assembly and maintenance time.
With 10 contacts plus protective earth, the CSHF10 provides a compact multipole interface for industrial power and control circuits. Its size 57.27 format, wide conductor range and robust construction make it suitable for machine builders, panel manufacturers and automation engineers requiring dependable removable electrical connections.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Industrial power and control connections.
- Motor and machinery interfaces.
- Material handling and conveyor systems.
- Heavy-duty multipole connector assemblies.
