Why Choose the ILME CSHF16 SQUICH Female Insert?

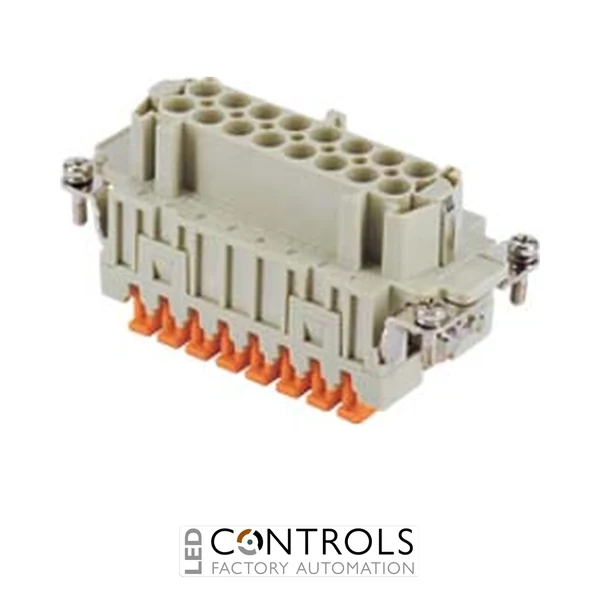

The ILME CSHF16, also designated CSHF 16, is a 16-pole plus protective earth female connector insert from the ILME CSH series. Designed for heavy-duty industrial connector systems, it features ILME's SQUICH® spring-terminal connection technology, allowing fast conductor termination without conventional terminal screws or specialist termination tools.
The CSHF16 is rated at 16 A and 500 V according to EN 61984 characteristics, with a 6 kV rated impulse withstand voltage and pollution degree 3. Its SQUICH® terminals accommodate conductors from 0.14–2.5 mm² (26–14 AWG), providing a versatile solution for industrial power, control and automation wiring.
Designed for ILME size 77.27 connector housings, the CSHF16 incorporates turned silver-plated female contacts within a robust polycarbonate insulating body. The insert is designed for at least 500 mating cycles and an operating temperature range of -40 to +125 °C, making it suitable for demanding machinery and industrial environments.
Key Advantages
- 16-pole plus protective earth female insert for heavy-duty industrial connectors.
- Fast SQUICH® spring-terminal connection without tools.
- 16 A, 500 V rating for industrial power and control applications.
- 6 kV impulse withstand voltage with pollution degree 3.
- Accepts conductors from 0.14–2.5 mm² (26–14 AWG).
- Turned silver-plated contacts provide dependable electrical performance.
Key Features
- ILME CSH series female connector insert.
- 16 poles plus protective earth (16+PE).
- SQUICH® spring-terminal connection without tools.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- 0.14–2.5 mm² conductor range.
- Compatible with 26–14 AWG conductors.
- Turned silver-plated female contacts.
- Polycarbonate insulating body.
- UL 94 V-0 flammability classification.
- Designed for size 77.27 connector housings.
Fast and Reliable SQUICH® Connection Technology
ILME SQUICH® technology uses spring terminals to secure conductors without conventional terminal screws. This reduces wiring time while maintaining consistent electrical contact pressure, making the connection system particularly suitable for machine building, panel assembly and automation applications where efficient installation and dependable operation are important.
With 16 contacts plus protective earth, the CSHF16 provides a compact multipole interface for power and control circuits. Its size 77.27 format, broad conductor range and robust industrial construction make it a practical choice for removable electrical connections in machinery and production equipment.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Industrial power and control connections.
- Motor and machinery interfaces.
- Material handling and conveyor systems.
- Heavy-duty multipole connector assemblies.
