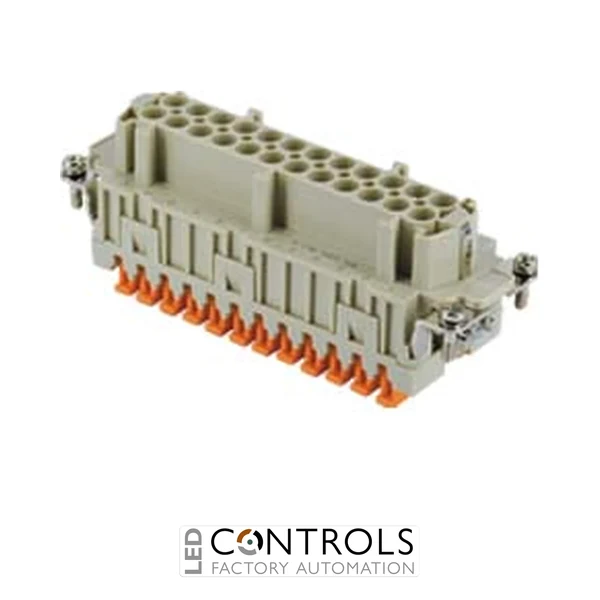

Why Choose the Ilme CSHF24 SQUICH® Female Insert?
The Ilme CSHF24 is a high-performance 24-pole + PE female industrial connector insert featuring Ilme's innovative SQUICH® spring terminal connection. Designed for fast, tool-free conductor termination, this CSH-series insert provides reliable multipole connectivity for power, control and auxiliary circuits in industrial machinery, automation systems and electrical equipment.
The CSHF24 uses SQUICH® spring terminal technology with integrated actuators, eliminating the need for conventional screw-terminal tightening during conductor connection. This technology combines consistent spring contact pressure with convenient wiring, helping machine builders and panel builders reduce installation and maintenance time while maintaining dependable electrical connections.
Rated at 16 A and 500 V, with a 6 kV impulse withstand voltage, the CSHF24 accepts conductor cross-sections from 0.14–2.50 mm² or AWG 26–14. Its standard 104.27 size and 24-pole + PE configuration make it suitable for compatible Ilme heavy-duty connector enclosures used throughout industrial machinery and automation installations.
Key Advantages
- SQUICH® tool-free spring terminal connection simplifies industrial connector wiring.
- 24 poles + PE provide high-density power, control and auxiliary connectivity.
- 16 A, 500 V rating for demanding industrial electrical applications.
- Accepts conductors from 0.14–2.50 mm² or AWG 26–14.
- Consistent spring pressure helps maintain reliable connections in machinery subject to vibration.
- Rated for at least 500 mating cycles for dependable repeated connection and disconnection.
Key Features
- Ilme CSH series female connector insert.
- 24 poles + protective earth.
- SQUICH® spring terminal connection without tools.
- Integrated actuator system for efficient conductor termination.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Size 104.27 connector format.
- Copper-alloy electrical contacts.
- Polycarbonate insulating body in RAL 7032 grey.
Fast, Tool-Free SQUICH® Connectivity for Industrial Machinery
Ilme SQUICH® technology is designed to simplify industrial connector wiring by combining spring-clamp electrical connections with convenient actuators. Conductors can be terminated without conventional screw-terminal tightening, reducing assembly effort while maintaining consistent spring pressure on each conductor.
The CSHF24 combines this connection technology with a 24-pole + PE female configuration and robust electrical characteristics for industrial service. With insulation resistance of at least 10 GΩ, contact resistance of no more than 3 mΩ and an operating temperature range of -40 °C to +125 °C, it is engineered for dependable operation in demanding machinery and automation environments.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Electrical control systems and cabinets.
- Robotics and automated manufacturing systems.
- Material handling and conveyor equipment.
- High-density multipole power and control connections.
