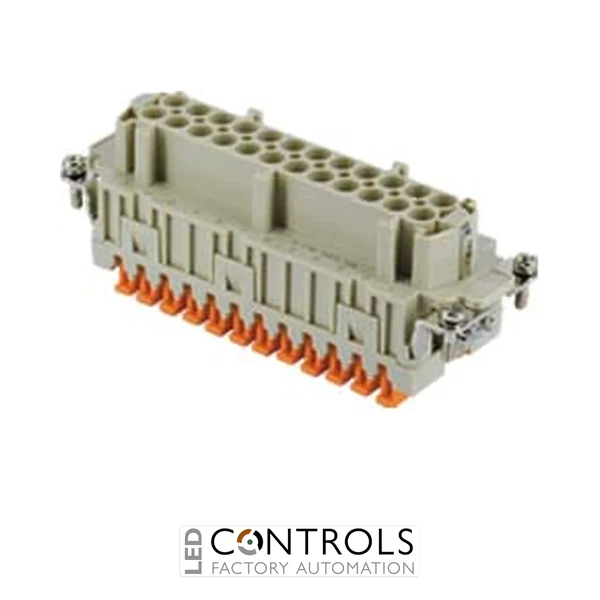

Why Choose the Ilme CSHF24N SQUICH® Female 24 Pole + Earth Insert?
The Ilme CSHF24N, manufacturer reference CSHF 24 N, is a robust female multipole connector insert with 24 poles plus protective earth, designed for industrial machinery, automation and control applications. Part of the Ilme CSH series, it features the innovative SQUICH® spring terminal connection system with actuator buttons, enabling conductors to be terminated without conventional terminal screws.
Rated at 16 A and 500 V, the CSHF24N offers a rated impulse withstand voltage of 6 kV and pollution degree 3. Its SQUICH® terminals accommodate conductors from 0.14–2.5 mm² (26–14 AWG), while turned silver-plated female contacts provide dependable electrical performance for demanding industrial connector assemblies.
The CSHF24N carries pole numbering 25–48 and is intended for the extended size 104.62 configuration, complementing the corresponding 1–24 insert in 48-pole arrangements. The tool-free actuator system helps reduce wiring time while providing consistent spring pressure, making the insert particularly useful for production equipment and modular machinery requiring reliable, serviceable multipole connections.
Key Advantages
- 24 poles plus protective earth with pole numbering 25–48.
- 16 A, 500 V rating for industrial power and control connections.
- SQUICH® spring terminal connection without tools simplifies conductor termination.
- Integrated actuator buttons support fast, convenient wiring and maintenance.
- Accepts conductors from 0.14–2.5 mm².
- Turned silver-plated female contacts provide dependable electrical connectivity.
Key Features
- Ilme CSH series female insert.
- 24 poles + PE, numbered 25–48.
- SQUICH® spring terminals with actuator buttons.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Conductor capacity of 0.14–2.5 mm² / 26–14 AWG.
- Turned silver-plated contacts.
- Size 104.62 insert configuration.
- Polycarbonate insulating body for demanding industrial use.
Reliable Tool-Free SQUICH® Connectivity for Industrial Machinery
Ilme SQUICH® technology combines the dependable contact pressure of a spring terminal with an easy-to-operate actuator button. Conductors can be connected without tightening conventional terminal screws, helping reduce assembly time while providing consistent termination quality in machinery and industrial control applications.
The CSHF24N provides positions 25–48 for extended size 104.62 connector arrangements. When used with the corresponding connector components and suitable Ilme enclosure, it enables multiple power, control or signal circuits to be grouped into a robust detachable interface that simplifies machine installation, servicing and module replacement.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Control panels and electrical distribution systems.
- Conveyor and material handling equipment.
- Motor, actuator and industrial control connections.
- 48-pole connector arrangements requiring positions 25–48.
