Why Choose the Ilme CSHM06 SQUICH® Male 6 Pole + Earth Insert?

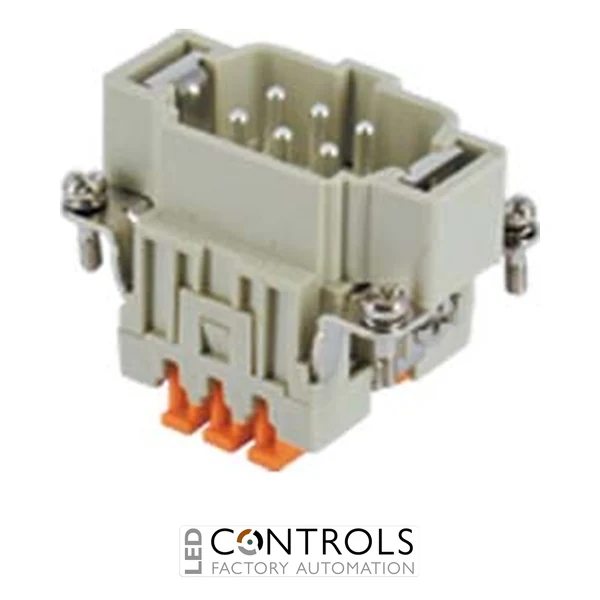

The Ilme CSHM06, manufacturer reference CSHM 06, is a robust male multipole connector insert with 6 poles plus protective earth, designed for dependable electrical connections in industrial machinery, automation and control equipment. Part of the Ilme CSH series, it features the innovative SQUICH® spring terminal connection system, allowing conductors to be terminated without conventional terminal screws.
Rated at 16 A and 500 V, the CSHM06 has a rated impulse withstand voltage of 6 kV and pollution degree 3. Its SQUICH® terminals accommodate conductors from 0.14–2.5 mm² (26–14 AWG), while turned silver-plated male contacts provide dependable electrical performance for demanding industrial connector assemblies.
The CSHM06 uses the standard Ilme size 44.27 insert format and has a durable polycarbonate insulating body. With an operating temperature range of -40 °C to +125 °C, at least 500 mating cycles and tool-free spring termination, it provides a practical solution for machine builders and panel builders requiring fast installation and reliable detachable connections.
Key Advantages
- 6 poles plus protective earth for industrial multipole connections.
- 16 A, 500 V rating suitable for industrial power and control circuits.
- SQUICH® spring terminal connection without tools simplifies conductor termination.
- Accepts conductors from 0.14–2.5 mm² for flexible installation.
- Turned silver-plated male contacts provide dependable electrical connectivity.
- Designed for at least 500 mating cycles for durable industrial service.
Key Features
- Ilme CSH series male insert.
- 6 poles + PE contact configuration.
- SQUICH® spring terminals for tool-free conductor connection.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Conductor capacity of 0.14–2.5 mm² / 26–14 AWG.
- Turned silver-plated contacts.
- Size 44.27 insert format.
- Polycarbonate insulating body with UL 94 V-0 flammability rating.
Reliable Tool-Free SQUICH® Connectivity for Industrial Machinery
Ilme SQUICH® technology combines spring-pressure conductor termination with an easy-to-operate actuator system. Conductors can be connected without tightening conventional terminal screws, helping reduce wiring and assembly time while maintaining consistent electrical contact pressure in industrial machinery and control applications.
When installed in a suitable Ilme hood or housing, the CSHM06 forms part of a robust multipole connector assembly capable of achieving high environmental protection levels. Its 6-pole plus protective earth configuration allows multiple power or control circuits to be grouped into one detachable interface, simplifying machine installation, servicing and component replacement.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Electrical control and power connections.
- Motor and actuator connection systems.
- Conveyor and material handling equipment.
- Modular machinery requiring detachable multipole connections.
