Why Choose the Ilme CSHM10 SQUICH Male Insert?

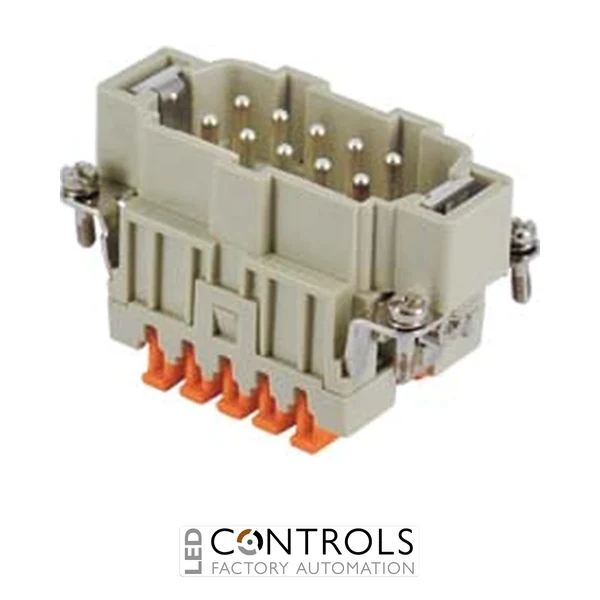

The Ilme CSHM10 is a SQUICH male multipole connector insert featuring 10 poles plus protective earth (10P+PE). Designed for heavy-duty industrial connector assemblies, it uses Ilme's spring-based SQUICH termination system with individual actuators for fast, secure conductor connection without conventional screw terminals.
The actuator-assisted connection system simplifies installation and maintenance by allowing conductors to be terminated using the integrated spring-clamp mechanism. This makes the CSHM10 particularly useful for machinery and automation applications where efficient field wiring, consistent conductor clamping and dependable electrical connections are required.
As a male 10P+PE insert, the CSHM10 is designed to mate with the corresponding compatible female insert and to be installed within suitable Ilme heavy-duty connector enclosures. Its multipole format provides a compact interface for carrying multiple power, control or signal circuits through a single detachable industrial connector assembly.
Key Advantages
- 10 poles plus protective earth (10P+PE) for multipole industrial connections.
- Ilme SQUICH spring-clamp termination technology.
- Individual actuators simplify conductor termination and release.
- No conventional screw-terminal tightening required.
- Provides consistent spring pressure on connected conductors.
- Supports efficient installation, maintenance and equipment replacement.
- Designed for compatible Ilme heavy-duty connector systems.
Key Features
- Ilme SQUICH series connector insert.
- Male connection.
- 10P+PE configuration.
- Spring-clamp conductor termination.
- Push-in actuator system for convenient wiring.
- Integrated protective-earth connection.
- Designed to mate with a compatible female insert.
- Suitable for industrial power and control wiring.
- Designed for compatible Ilme rectangular connector enclosures.
Fast and Dependable SQUICH Conductor Termination
Ilme SQUICH technology is designed to simplify industrial connector wiring by replacing conventional screw terminals with spring-based conductor clamping. The actuator mechanism makes it straightforward to operate the terminal during wiring and servicing while the spring connection maintains consistent contact pressure on the conductor.
The CSHM10 combines this termination method with a 10P+PE male configuration, making it well suited to machinery, automation and control installations where multiple electrical circuits must be connected through a compact, detachable and serviceable industrial connector interface.
Typical Applications
- Industrial machinery and machine building.
- Factory automation systems.
- Robotics and production equipment.
- Electrical control panels and cabinets.
- Motor, actuator and machine connections.
- Heavy-duty multipole connector assemblies.
- Industrial power, control and signal wiring.
