Why Choose the Ilme CSHM16 SQUICH Male Insert?

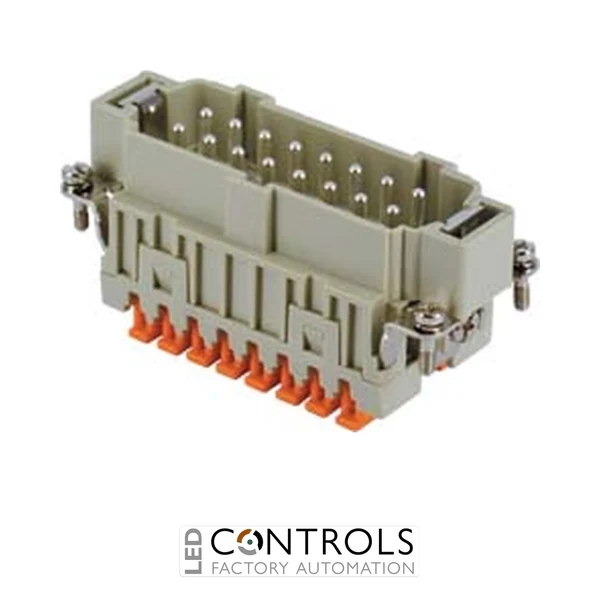

The Ilme CSHM16 is a CSH series SQUICH male connector insert featuring 16 poles plus protective earth (16P+PE). Rated at 16 A and 500 V, it provides a robust multipole connection for industrial machinery, automation and control applications.
Ilme's SQUICH spring terminal connection enables tool-free conductor termination using individual actuators rather than conventional screw terminals. The connection system accepts conductors from 0.14–2.5 mm² (AWG 26–14), supporting fast installation while maintaining consistent spring pressure on the connected conductors.
Designed for size 77.27 connector enclosures, the CSHM16 combines a grey insulating body with silver-plated contacts and an integrated protective-earth connection. Its industrial construction and SQUICH termination technology make it well suited to applications requiring efficient assembly, straightforward servicing and dependable electrical connections.
Key Advantages
- 16 poles plus protective earth (16P+PE) for high-density industrial connections.
- Rated at 16 A and 500 V.
- SQUICH spring terminal technology enables termination without conventional screw terminals.
- Individual actuators simplify conductor insertion and release.
- Accepts conductors from 0.14–2.5 mm² (AWG 26–14).
- Silver-plated contacts support dependable electrical performance.
- Designed for compatible size 77.27 Ilme enclosures.
Key Features
- Ilme CSH series multipole insert.
- Male connection.
- 16P+PE configuration.
- SQUICH spring terminal connection without tools.
- Individual actuator-assisted conductor termination.
- 16 A rated current.
- 500 V rated voltage.
- Size 77.27 connector format.
- Silver-plated contacts.
- Grey insulating body.
Fast Tool-Free SQUICH Termination for Industrial Wiring
SQUICH technology replaces conventional screw-terminal wiring with spring-clamp terminals operated by individual actuators. This arrangement helps speed up connector assembly and maintenance while providing consistent conductor clamping, making it particularly useful in industrial environments where dependable connections and efficient wiring are priorities.
With 16P+PE, a 16 A current rating and a compact size 77.27 format, the Ilme CSHM16 provides a high-density detachable connection interface for power and control circuits in compatible heavy-duty connector systems.
Typical Applications
- Industrial machinery and machine building.
- Factory automation systems.
- Robotics and production equipment.
- Electrical control panels and cabinets.
- Motor, actuator and machine connections.
- Heavy-duty multipole connector assemblies.
- Industrial power and control wiring requiring fast spring-terminal termination.
