Why Choose the Ilme CSHM24 SQUICH® Male Insert?

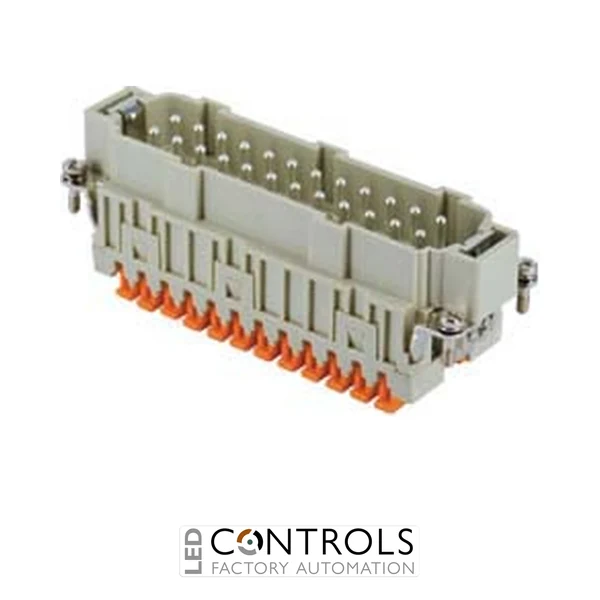

The Ilme CSHM24 is a 24-pole + PE male industrial connector insert from the Ilme CSH series, featuring SQUICH® spring terminal connection with push-in actuators for rapid conductor termination without dedicated wiring tools. Rated at 16 A and 500 V, it provides a high-density multipole connection for industrial machinery, automation and control applications.
Ilme SQUICH® technology uses integrated actuator buttons and spring terminals to simplify connector wiring. Correctly stripped conductors are inserted into the terminal positions and secured using the actuator mechanism, eliminating conventional terminal-screw tightening while maintaining dependable spring pressure on the conductors.
Designed in size 104.27, the CSHM24 provides 24 male poles plus protective earth (PE) and accepts conductors from 0.14–2.5 mm² (AWG 26–14). Turned silver-plated contacts, robust insulating construction and a wide operating temperature range make it suitable for demanding industrial connector assemblies requiring frequent installation, servicing or disconnection.
Key Advantages
- 24 poles + PE for high-density industrial electrical connections.
- 16 A, 500 V rating suitable for power and control circuits.
- SQUICH® spring terminals with push-in actuators simplify conductor termination.
- Connection without dedicated terminal wiring tools helps reduce assembly time.
- Accepts conductors from 0.14–2.5 mm² (AWG 26–14).
- Designed for compatible size 104.27 Ilme connector enclosures.
- Rated for at least 500 mating cycles for dependable repeated connection and disconnection.
Key Features
- Ilme CSH series SQUICH® male insert.
- 24 poles + protective earth (PE).
- SQUICH® spring terminal connection without tools.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Size 104.27 connector format.
- Conductor capacity of 0.14–2.5 mm².
- Turned silver-plated contacts.
- Suitable for compatible Ilme heavy-duty industrial connector enclosures.
Fast SQUICH® Connection for High-Density Industrial Wiring
SQUICH® technology is designed to simplify the wiring of heavy-duty multipole connectors by replacing conventional terminal-screw tightening with actuator-operated spring connections. Once the conductor has been correctly stripped and inserted into the terminal, the actuator is operated to establish a secure electrical connection with continuous spring clamping pressure.
With 24 male poles plus PE, the CSHM24 provides a compact detachable interface for numerous power, control and auxiliary circuits. Its size 104.27 format makes it suitable for compatible Ilme connector enclosures used on modular machinery, production equipment and automation systems where rapid installation and straightforward maintenance are important.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Packaging and materials-handling machinery.
- Electrical control and distribution systems.
- High-density power and control connections.
- OEM machinery and modular production equipment.
