Why Choose the ILME CSHM24N SQUICH Male Insert?

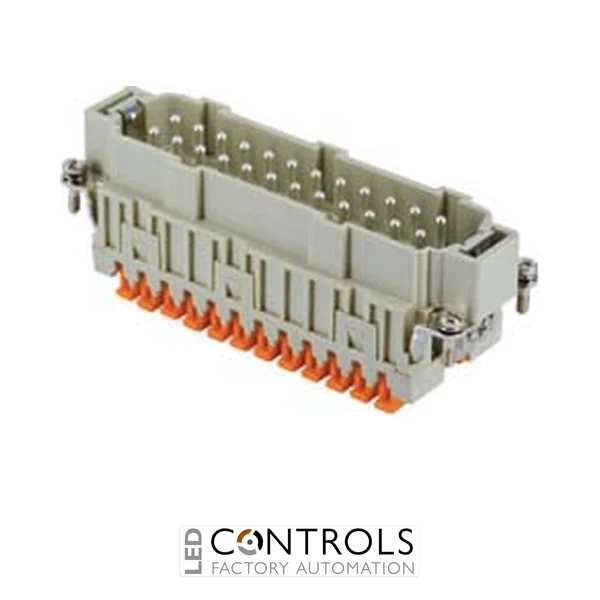

The ILME CSHM24N, also designated CSHM 24 N, is a 24-pole plus protective earth male connector insert from the ILME CSH SQUICH® range. Designed for heavy-duty industrial connector systems, it uses ILME's SQUICH® spring-terminal connection without tools, providing rapid and dependable conductor termination for machinery, automation and control applications.
The CSHM24N is rated at 16 A and 500 V and accepts conductors from 0.14–2.5 mm² (26–14 AWG). Its spring-clamp terminals maintain reliable contact pressure without conventional terminal screws, helping reduce installation time and simplifying maintenance in industrial electrical systems.
Designed as the 25–48 numbered male insert for a 48-pole arrangement, the CSHM24N uses the ILME size 104.62 format. Silver-plated contacts, a durable polycarbonate insulating body and an operating temperature range of -40 to +125 °C make it suitable for demanding industrial connector installations.
Key Advantages
- 24 poles plus protective earth for multipole industrial connections.
- SQUICH® spring-terminal technology enables termination without specialist tools.
- 16 A, 500 V rating for industrial power and control applications.
- Accepts conductors from 0.14–2.5 mm² (26–14 AWG).
- 25–48 contact numbering for use as the second insert in a 48-pole configuration.
- Silver-plated contacts provide dependable electrical connection performance.
Key Features
- ILME CSH SQUICH® series male connector insert.
- 24 poles plus protective earth (24+PE).
- Male connection with contact positions numbered 25–48.
- SQUICH® spring-clamp termination without tools.
- 16 A rated current.
- 500 V rated voltage.
- 0.14–2.5 mm² conductor range.
- Compatible with 26–14 AWG conductors.
- Silver-plated contacts.
- Polycarbonate insulating body.
- UL 94 V-0 flammability classification.
- Designed for size 104.62 connector arrangements.
Fast and Reliable SQUICH® Connection Technology
ILME SQUICH® technology uses spring-clamp terminals to secure conductors without conventional terminal screws or dedicated termination tools. This helps shorten assembly time while maintaining consistent electrical contact pressure, making SQUICH® inserts particularly useful for machine building, panel assembly and industrial automation applications.
The CSHM24N carries contact numbering 25–48 and is designed for a size 104.62 arrangement. Used with the corresponding first 24-pole section, it enables a 48-pole connector configuration while retaining the installation and maintenance advantages of ILME SQUICH® spring-terminal technology.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Multipole power and control connections.
- Material handling and conveyor systems.
- Industrial control panels and machinery interfaces.
- 48-pole heavy-duty connector assemblies requiring contacts 25–48.
