Why Choose the ILME CSSM16 Male Insert?

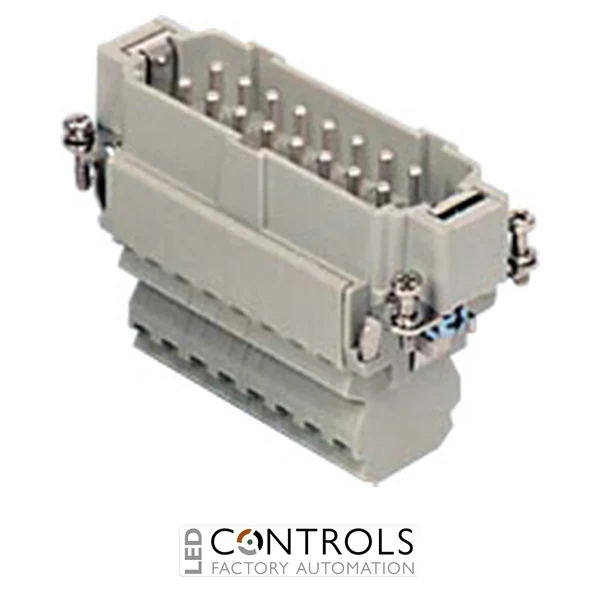

The ILME CSSM16 is a 16-pole + protective earth male connector insert from the ILME CSS series, designed for reliable detachable electrical connections in industrial machinery, automation and control systems. Its dual spring terminal connection provides two conductor connection points per pole, offering a practical solution for applications requiring secure, flexible wiring.
Rated at 16 A and 500 V with a 6 kV rated impulse withstand voltage, the CSSM16 is suitable for power, control and auxiliary circuits in demanding industrial environments. The spring terminals accept conductors from 0.14–2.5 mm², while turned silver-plated contacts provide dependable electrical conductivity and durable mating performance.
Designed for compatible size 77.27 heavy-duty connector enclosures, the CSSM16 combines high contact density with screwless spring termination. The insulating body is manufactured from self-extinguishing thermoplastic material, providing a robust insert solution for machine builders, panel builders and industrial automation installations.
Key Advantages
- High-density 16-pole + PE male insert for industrial connections.
- Dual spring terminal technology provides two connection points per pole.
- Rated at 16 A and 500 V for power and control applications.
- 6 kV impulse withstand voltage for dependable industrial insulation performance.
- Accepts conductors from 0.14–2.5 mm².
- Turned silver-plated contacts provide reliable electrical performance.
- Designed for compatible size 77.27 ILME connector enclosures.
Key Features
- ILME CSS series male insert.
- 16 poles + protective earth.
- Dual spring terminal connection.
- Two conductor connection points per pole.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- 0.14–2.5 mm² conductor capacity.
- Turned silver-plated contacts.
- Self-extinguishing thermoplastic insulating body.
Dual Spring Connections for High-Density Industrial Wiring
The ILME CSSM16 dual spring system provides two conductor connection points for each electrical pole, allowing convenient distribution or looping of circuits without requiring an additional external terminal at every connection. Spring clamping maintains consistent pressure on the conductor without conventional terminal screws, supporting reliable wiring in machinery exposed to vibration and thermal cycling.
With sixteen electrical poles plus protective earth within a size 77.27 insert, the CSSM16 provides a compact detachable interface for multi-circuit machinery. When paired with a compatible female insert and installed in a suitable ILME enclosure, it creates a robust connection solution for industrial power, control and auxiliary wiring.
Typical Applications
- Industrial machinery and automation systems.
- Control panel and machine interface connections.
- Packaging and production machinery.
- Material handling and conveyor equipment.
- Robotics and automated manufacturing systems.
- Multi-circuit power and control distribution.
- OEM machinery requiring detachable high-density connections.
