Why Choose the Ilme CTF10R Female Wedge Insert?

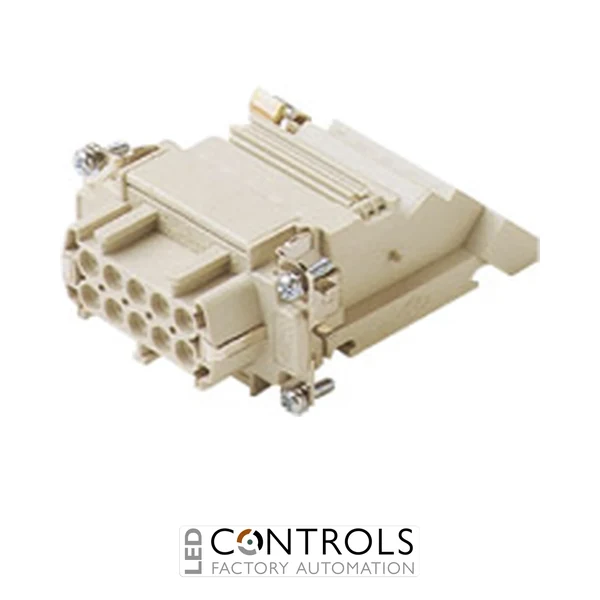

The Ilme CTF10R, manufacturer reference CTF 10 R, is a female 10-pole plus protective earth multipole connector insert with an incorporated terminal block and right-side mounting. Part of the Ilme CT series, it is designed for dependable detachable electrical connections in industrial machinery, automation systems and control equipment.
The CTF10R uses a proven screw terminal connection and is rated at 16 A and 230/400 V, with a rated impulse withstand voltage of 4 kV. Its terminals accept conductors from 0.75–2.5 mm² (18–14 AWG), providing a practical connection range for industrial power and control wiring.
Designed in the Ilme size 57.27 format, the CTF10R incorporates turned, silver-plated female contacts and a self-extinguishing polycarbonate insulating body. Its right-side terminal-block configuration provides a convenient wiring arrangement for compatible Ilme connector systems while supporting straightforward installation, servicing and equipment replacement.
Key Advantages
- 10 poles plus protective earth for industrial multipole connections.
- 16 A, 230/400 V rating suitable for industrial power and control circuits.
- Reliable screw terminal connection for secure conductor termination.
- Right-side mounting configuration with incorporated terminal block.
- Accepts conductors from 0.75–2.5 mm².
- Turned silver-plated female contacts provide dependable electrical performance.
Key Features
- Ilme CT series female insert.
- 10 poles + PE contact configuration.
- Right-side mounting version.
- Incorporated terminal block with screw terminals.
- 16 A rated current.
- 230/400 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Conductor capacity of 0.75–2.5 mm² / 18–14 AWG.
- Turned silver-plated contacts.
- Size 57.27 connector insert format.
Reliable Right-Side Screw-Terminal Connectivity
The Ilme CT series combines multipole connector contacts with an incorporated terminal block, providing an organised interface between industrial wiring and detachable connector assemblies. The CTF10R uses screw terminals with a recommended main-contact tightening torque of 0.4 Nm, helping provide secure conductor clamping for reliable machine and control wiring.
Its right-side mounting arrangement makes the CTF10R particularly useful where connector orientation and terminal accessibility are important. The insert can be fitted from the front of a suitable enclosure and can be mated with compatible Ilme CNE, CCE, CSS, CSE and CSH inserts, providing flexibility when designing or maintaining industrial connector systems.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Electrical control panels and distribution systems.
- Motor, actuator and machine power connections.
- Conveyor and material handling equipment.
- Modular equipment requiring detachable multipole connections.
