Why Choose the Ilme CTF16L Female Wedge Insert?

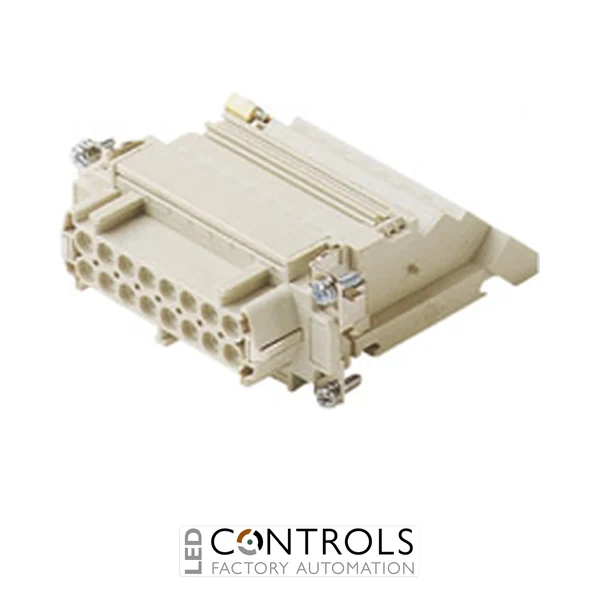

The Ilme CTF16L is a 16-pole + PE female industrial connector insert from the Ilme CT series, featuring reliable screw terminal connections and an incorporated terminal block. Designed for left-side mounting, it provides a practical multipole connection solution for industrial machinery, automation equipment and electrical control systems.
Rated at 16 A and 230/400 V, the CTF16L combines 16 female electrical poles with a protective earth connection in a size 77.27 format. Its screw terminals provide a familiar and dependable method of terminating conductors, making the insert particularly suitable for machine builders, panel builders and industrial maintenance applications.
The CT series wedge-style arrangement allows left and right insert sections to be selected for compatible connector configurations. The CTF16L is specifically the left-side female version, with a durable polycarbonate insulating body and copper-alloy contacts engineered for industrial connector assemblies.
Key Advantages
- 16 poles + PE for multipole industrial electrical connections.
- 16 A rated current for power and control applications.
- 230/400 V rated voltage for compatible industrial circuits.
- Reliable screw terminal connection for straightforward conductor termination.
- Left-side mounting configuration for compatible CT connector arrangements.
- Integrated terminal block simplifies connector assembly.
- Standard size 77.27 format for compatible Ilme connector systems.
Key Features
- Ilme CT series industrial connector insert.
- Female insert with 16 poles + PE.
- Screw terminal connection.
- Left-side mounting.
- 16 A rated current.
- 230/400 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Size 77.27 connector format.
- Incorporated terminal block.
- Polycarbonate insulating body with copper-alloy contacts.
Reliable Screw-Terminal Connection for Industrial Machinery
Screw-terminal connector inserts provide a straightforward conductor termination method widely used throughout industrial electrical systems. Conductors are secured mechanically within individual terminals, allowing installers to create robust connections using conventional wiring practices while retaining the convenience of a detachable multipole connector interface.
The CTF16L combines this proven termination method with an incorporated terminal block and left-side mounting arrangement. Used with compatible Ilme connector components, it provides a convenient interface for routing multiple power and control circuits between machinery modules, production equipment and electrical control systems.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Electrical control and distribution systems.
- Packaging and materials-handling machinery.
- Power and control circuit connections.
- OEM machinery and modular industrial equipment.
