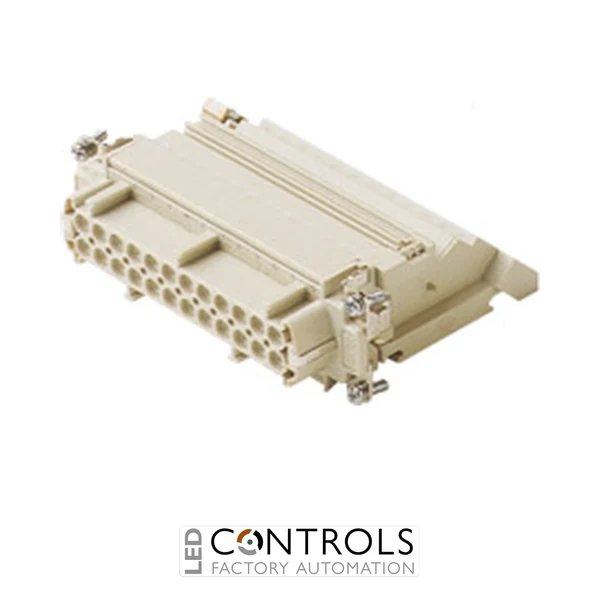

Why Choose the ILME CTF24R Female Right-Hand Wedge Insert?
The ILME CTF24R, manufacturer designation CTF 24 R, is a 24-pole plus protective earth female connector insert from the ILME CT series. Designed for right-side mounting, this heavy-duty insert uses conventional screw terminals to provide secure, serviceable conductor connections for industrial machinery, automation and control applications.
The CTF24R is rated at 16 A with an IEC voltage rating of 230–400 V. Its screw terminals accommodate conductors from 0.75–2.5 mm² (18–14 AWG), providing a practical connection range for industrial power and control wiring.
Designed in ILME size 104.27, the CTF24R incorporates silver-plated female contacts within a durable thermoplastic insulating body. An operating temperature range of -40 to +125 °C and mechanical durability of up to 500 mating cycles support dependable operation in demanding industrial environments.
Key Advantages
- 24 poles plus protective earth for high-density industrial connections.
- Female right-hand configuration for compatible ILME CT assemblies.
- Proven screw-terminal connection for secure and serviceable wiring.
- 16 A rated current for industrial power and control circuits.
- Accepts conductors from 0.75–2.5 mm² (18–14 AWG).
- Silver-plated contacts provide reliable electrical connection performance.
Key Features
- ILME CT series female connector insert.
- 24 poles plus protective earth (24+PE).
- Right-side mounting configuration.
- Screw-terminal connection.
- 16 A rated current.
- 230–400 V IEC voltage rating.
- 0.75–2.5 mm² conductor range.
- Compatible with 18–14 AWG conductors.
- Silver-plated female contacts.
- Thermoplastic insulating body.
- UL 94 V-0 flammability classification.
- Designed in size 104.27.
Secure Screw-Terminal Connection with Right-Side Mounting
The CTF24R uses established screw-terminal technology to provide secure conductor connections that are straightforward to install, inspect and service. This termination method is well suited to industrial equipment where dependable wiring and convenient maintenance are important.
The right-side mounting configuration distinguishes the CTF24R from the corresponding left-hand CTF24L version. With 24 contacts plus protective earth in the size 104.27 format, it provides a high-density removable electrical interface for compatible ILME CT connector assemblies.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Multipole power and control connections.
- Industrial control panels and equipment interfaces.
- Material handling and conveyor systems.
- Heavy-duty connector assemblies requiring a right-hand female insert.
