Why Choose the Ilme CTF40L Female Insert?

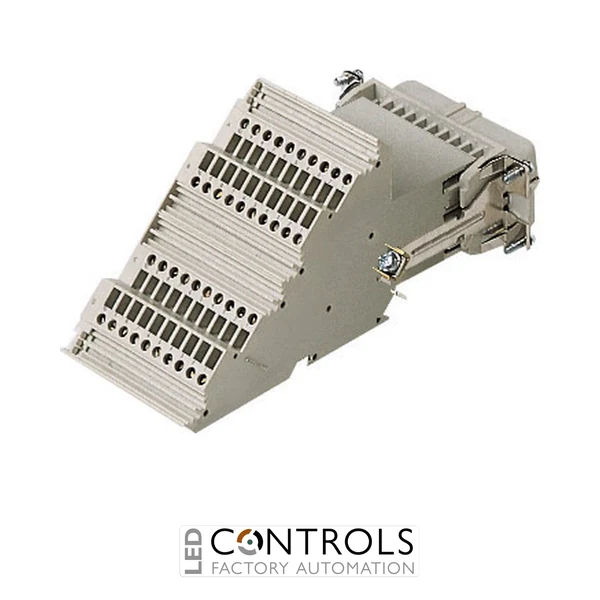

The Ilme CTF40L is a high-density 40-pole plus earth female connector insert designed for industrial machinery, automation systems and electrical control equipment. Part of the Ilme CT series, this size 77.27 insert features screw terminal connections, an incorporated terminal block and a left-side mounting configuration for compatible Ilme industrial connector assemblies.
The CTF40L is rated at 10 A and 250 V, with a rated impulse withstand voltage of 4 kV. Its 40 electrical poles plus protective earth provide a compact solution for applications requiring a large number of control, signal or auxiliary circuits to pass through a single detachable industrial connector.
Designed for conductors from 0.75–2.50 mm² (AWG 18–14), the CTF40L uses turned silver-plated contacts for dependable electrical performance. The insert itself provides IP20 protection without an enclosure, while installation in a suitable Ilme enclosure can provide IP66/IP69 protection for demanding industrial environments.
Key Advantages
- High-density 40-pole plus protective earth female insert.
- 10 A, 250 V rating for industrial control and electrical circuits.
- Screw terminal connection provides secure and serviceable conductor termination.
- Integrated terminal block helps provide an organised high-density wiring solution.
- Left-side mounting configuration for compatible CT connector assemblies.
- Accepts conductors from 0.75–2.50 mm² (AWG 18–14).
- Turned silver-plated contacts provide reliable electrical conductivity.
Key Features
- Ilme CT series female insert.
- 40 poles + PE configuration.
- 10 A rated current.
- 250 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Screw terminal connection.
- 0.75–2.50 mm² conductor capacity.
- AWG 18–14 conductor range.
- Incorporated terminal block.
- Left-side mounting configuration.
- Size 77.27 industrial connector insert.
- Turned silver-plated contacts.
- Designed for at least 500 mating cycles.
Industrial multipole connectors allow numerous electrical circuits to be combined within a single detachable interface, simplifying machinery installation, servicing and equipment replacement. The Ilme CTF40L provides 40 female electrical contacts plus protective earth, making it particularly suitable for high-density control and auxiliary wiring where many circuits must pass through one connector assembly.
The incorporated terminal block and screw terminal connections provide secure conductor termination and straightforward servicing. Combined with silver-plated contacts, high insulation resistance and a wide operating temperature range, the CTF40L provides a dependable connection solution for demanding industrial machinery and automation installations.
Typical Applications
- Industrial machinery and factory automation.
- High-density control and signal connections.
- Electrical control panels and cabinets.
- Production and packaging machinery.
- Conveyor and material handling systems.
- Process control and manufacturing equipment.
- OEM machinery and multipole connector assemblies.
