Why Choose the Ilme CTM10L Male Wedge Insert?

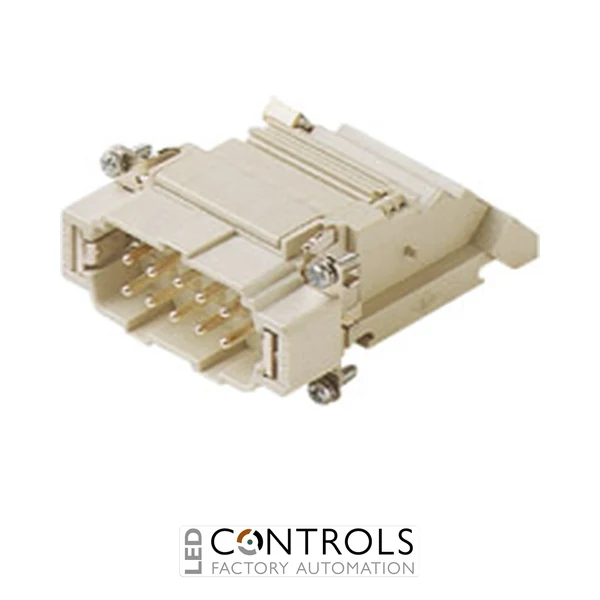

The Ilme CTM10L, manufacturer reference CTM 10 L, is a male 10-pole plus protective earth multipole connector insert with an incorporated terminal block and left-side mounting. Part of the Ilme CT series, it provides an organised and dependable connection solution for industrial machinery, automation systems and control equipment.
The CTM10L uses a proven screw terminal connection and is rated at 16 A and 230/400 V, with a rated impulse withstand voltage of 4 kV. Its terminals accommodate conductors from 0.75–2.5 mm² (18–14 AWG), making it suitable for a broad range of industrial power and control wiring applications.
Designed for the Ilme size 57.27 format, the CTM10L incorporates turned, silver-plated male contacts and a durable polycarbonate insulating body. Its left-side terminal-block arrangement and front-fitting design help simplify installation and maintenance in compatible industrial connector assemblies.
Key Advantages
- 10 poles plus protective earth for multipole industrial connections.
- 16 A, 230/400 V rating for power and control applications.
- Reliable screw terminal connection for secure conductor termination.
- Left-side mounting with an incorporated terminal block.
- Accepts conductors from 0.75–2.5 mm².
- Turned silver-plated male contacts provide dependable electrical performance.
Key Features
- Ilme CT series male insert.
- 10 poles + PE contact configuration.
- Left-side mounting version.
- Incorporated terminal block with screw terminal connections.
- 16 A rated current.
- 230/400 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Conductor capacity of 0.75–2.5 mm² / 18–14 AWG.
- Turned silver-plated contacts.
- Size 57.27 connector insert format.
Reliable Left-Side Screw-Terminal Connectivity
The Ilme CT series combines multipole connector contacts with an incorporated terminal block, creating an organised interface between industrial wiring and detachable connector systems. The CTM10L's screw terminals provide secure conductor clamping for non-prepared conductors from 0.75–2.5 mm², supporting reliable power and control wiring in machinery applications.
The left-side mounting arrangement helps accommodate connector installations where terminal orientation and wiring access are important. The CTM10L can be fitted from the front of the enclosure and can be mated with compatible Ilme CNE, CCE, CSS, CSE and CSH inserts, providing flexibility for industrial connector design and maintenance.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Electrical control panels and distribution systems.
- Motor, actuator and machine power connections.
- Conveyor and material handling equipment.
- Modular machinery requiring detachable multipole connections.
