Why Choose the ILME CTM24L Male Wedge Insert?

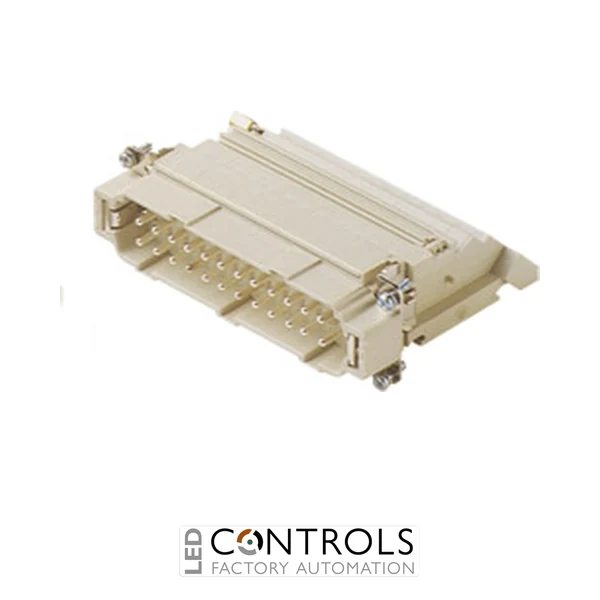

The ILME CTM24L is a 24-pole + protective earth male terminal-block insert from the ILME CT series, designed for reliable industrial power and control connections. Featuring a left-hand mounting configuration and screw terminal connections, it provides a practical high-density wiring solution for compatible ILME heavy-duty connector enclosures.
Rated at 16 A and 400 V, the CTM24L uses silver-plated contacts and conventional screw-clamp termination to provide secure conductor connections in demanding machinery and automation installations. The terminal-block format also allows the insert to be fitted from the front of compatible enclosures, simplifying assembly and maintenance.
The CTM24L is designed for size 104.27 enclosures and forms the left-hand male version of the CT 24 insert family. It can be mated with compatible ILME CNE, CCE, CSS and CSH inserts, giving machine builders flexibility when configuring detachable multi-pole interfaces.
Key Advantages
- 24-pole + PE male insert for high-density industrial wiring.
- Left-hand mounting configuration for compatible terminal-block assemblies.
- Reliable screw terminal connection for secure conductor termination.
- Rated at 16 A and 400 V for industrial power and control circuits.
- Silver-plated contacts provide dependable electrical performance.
- Designed for compatible size 104.27 ILME enclosures.
- Front-mounting terminal-block design supports convenient assembly and servicing.
Key Features
- ILME CT series male terminal-block insert.
- 24 poles + protective earth.
- Left-hand mounting version.
- Screw terminal connection.
- 16 A rated current.
- 400 V rated voltage.
- Silver-plated contacts.
- Compatible with CNE, CCE, CSS and CSH insert families for mating.
- Designed for installation in compatible size 104.27 enclosures.
Left-Hand Terminal-Block Connections for Industrial Machinery
The ILME CTM24L combines a high-density 24-pole + PE arrangement with screw-clamp termination in a terminal-block style insert. Its left-hand configuration enables coordinated installation with the corresponding CT family components, while front fitting provides convenient access during connector assembly and maintenance.
The CT series is designed to provide flexible mating options with several established ILME insert families. When the CTM24L is installed within an appropriate size 104.27 enclosure and paired with a compatible female insert, it creates a robust detachable interface for machinery power, control and auxiliary circuits.
Typical Applications
- Industrial machinery and automation systems.
- Control panel and machine interface connections.
- Packaging and production equipment.
- Material handling and conveyor machinery.
- Robotics and automated manufacturing systems.
- Multi-circuit power and control connections.
- OEM machinery requiring detachable terminal-block interfaces.
