Why Choose the Ilme CTM40L Male Wedge Insert?

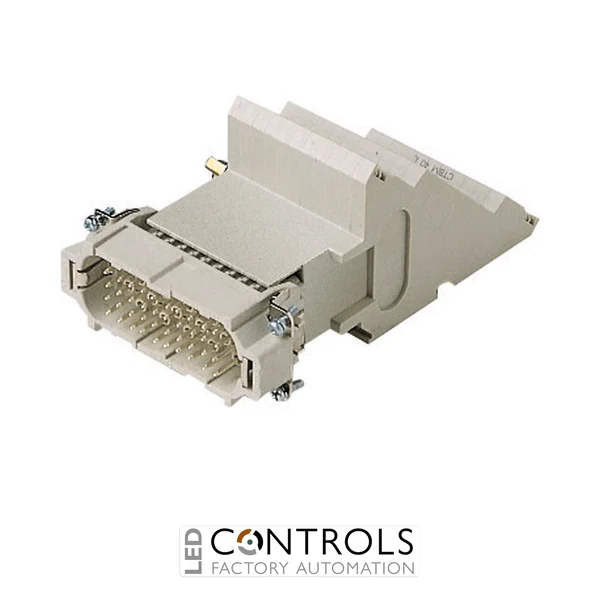

The Ilme CTM40L is a 40-pole + PE male industrial connector insert from the Ilme CT series, designed for high-density multipole connections in machinery, automation and electrical control systems. It features reliable screw terminal connections, an incorporated terminal block and a left-side mounting configuration for compatible CT-series connector assemblies.
Manufacturer data rates the CTM40L at 10 A and 250 V, with a 4 kV rated impulse withstand voltage and pollution degree 3. It accepts conductors from 0.75–2.5 mm² (AWG 18–14), providing a practical screw-terminal interface for numerous control, signal and auxiliary circuits within a single industrial connector.
Designed in the established size 77.27 format, the CTM40L combines 40 male contacts with protective earth in a compact wedge-style insert. Turned silver-plated contacts, a wide -40 °C to +125 °C operating temperature range and a mechanical life of at least 500 mating cycles support dependable service in demanding industrial installations.
Key Advantages
- 40 poles + PE provide a high-density multipole connection in a compact industrial format.
- 10 A, 250 V electrical rating according to manufacturer data.
- Screw terminal connection provides familiar and serviceable conductor termination.
- Left-side mounting configuration for compatible CT-series arrangements.
- Accepts conductors from 0.75–2.5 mm² (AWG 18–14).
- Incorporated terminal block supports organised high-density wiring.
- Turned silver-plated contacts provide dependable electrical performance.
Key Features
- Ilme CT series industrial connector insert.
- Male insert with 40 poles + PE.
- Left-side mounting.
- Screw terminal connection.
- 10 A rated current.
- 250 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Size 77.27 connector format.
- Incorporated terminal block.
- Turned silver-plated contacts.
High-Density Screw-Terminal Connection for Industrial Wiring
The CTM40L combines a high pole count with conventional screw-terminal technology, providing an accessible and serviceable method for terminating industrial conductors. With 40 male poles plus PE, numerous control, signalling and auxiliary circuits can be routed through one detachable connector interface while individual conductors remain securely terminated within the incorporated terminal block.
Its left-side mounting configuration is intended for compatible CT-series arrangements and should be selected according to the required connector layout. When installed in a suitable Ilme enclosure and paired with the corresponding mating insert, the CTM40L provides a robust high-density connection for machinery, automation and modular industrial equipment.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- High-density control and signalling connections.
- Packaging and materials-handling machinery.
- Electrical control and distribution systems.
- OEM machinery and modular industrial equipment.
