Why Choose the Ilme CTSEF16L Female 16 Pole + PE Spring Insert?

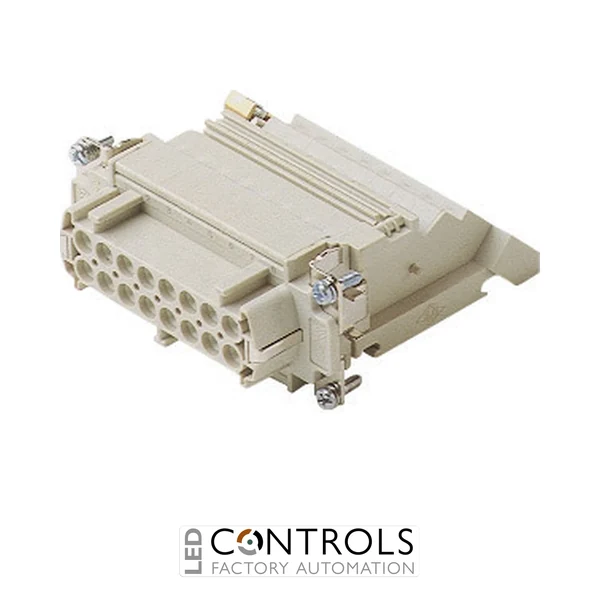

The Ilme CTSEF16L is a 16-pole + PE female industrial connector insert from the Ilme CTSE series, designed for reliable multipole connections in machinery, automation equipment and industrial control systems. This left-side mounting version combines a 16 A current rating with spring terminal technology and an incorporated terminal block for efficient industrial wiring.
The CTSEF16L uses a spring terminal connection, maintaining consistent pressure on connected conductors without relying on conventional screw-clamping terminals. This termination method provides a secure and serviceable connection while helping simplify wiring in applications where vibration, maintenance requirements and long-term connection reliability are important.
Designed in the 77.27 size, the CTSEF16L provides 16 poles plus protective earth and is rated at 16 A and 500 V, with a rated impulse withstand voltage of 6 kV. It accepts conductors from 0.14–2.50 mm² or AWG 26–14 and features turned silver-plated contacts for dependable industrial electrical performance.
Key Advantages
- 16 poles + PE provide high-density industrial power and control connectivity.
- Spring terminal connection maintains consistent conductor clamping pressure.
- 16 A, 500 V rating for demanding industrial electrical applications.
- Left-side mounting configuration for compatible Ilme connector arrangements.
- Incorporated terminal block supports organised and efficient wiring.
- Accepts conductor cross-sections from 0.14–2.50 mm² or AWG 26–14.
Key Features
- Ilme CTSE series female connector insert.
- 16 poles + protective earth.
- Female connection configuration.
- Left-side mounting.
- Spring terminal connection.
- Incorporated terminal block.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Size 77.27 connector format.
- Turned silver-plated contacts.
- IP20 protection without enclosure and up to IP66/IP69 with a suitable enclosure.
Left-Side Spring Terminal Connectivity for Industrial Equipment
The Ilme CTSEF16L combines an incorporated terminal block with spring terminal technology to provide a reliable alternative to conventional screw-connected inserts. Spring pressure maintains the electrical connection to the conductor, making this termination method particularly suitable for industrial machinery where vibration and repeated operating cycles can place additional demands on wiring connections.
Its dedicated left-side mounting configuration allows the CTSEF16L to be selected alongside complementary CTSE components when constructing the required connector arrangement. With 16 poles + PE, a 500 V rating and conductors up to 2.50 mm², it provides a compact and dependable connection platform for industrial power and control wiring.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Electrical control panels and cabinets.
- Robotics and automated manufacturing equipment.
- Material handling and conveyor systems.
- Detachable multipole power and control connections.
