Why Choose the Ilme CTSEF24R Female Wedge Insert?

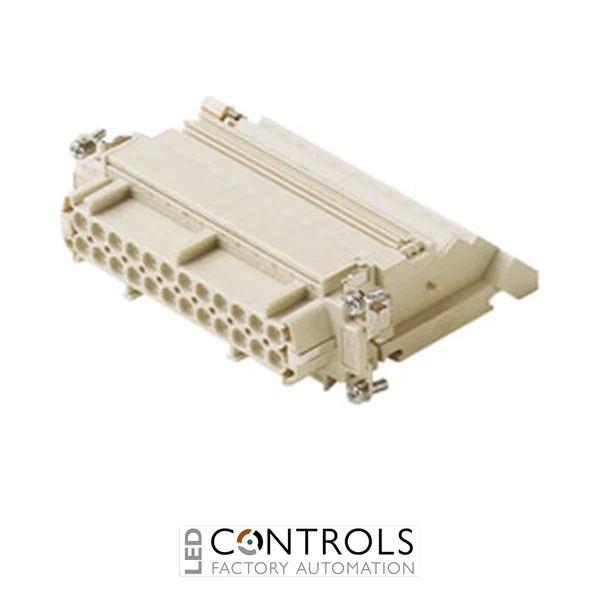

The Ilme CTSEF24R, manufacturer reference CTSEF 24 R, is a female 24-pole plus protective earth connector insert with terminal block and right-side mounting. Part of the Ilme CTSE series, it combines a high-density 24-pole configuration with spring terminal technology for industrial machinery, automation and control connections.
Rated at 16 A and 500 V, the CTSEF24R has a rated impulse withstand voltage of 6 kV and pollution degree 3. Its spring terminals accommodate conductors from 0.14–2.5 mm² (26–14 AWG), providing consistent conductor clamping without conventional screw-terminal tightening.
The CTSEF24R is designed for size 104.27 and is specified for bulkhead-mounted housing applications. Silver-plated contacts, a wide conductor range and a durable industrial design make this right-hand female insert a practical solution for serviceable multipole connector assemblies.
Key Advantages
- 24 poles plus protective earth for high-density industrial connections.
- 16 A, 500 V rating for industrial power and control circuits.
- Spring terminal connection provides consistent conductor clamping.
- Right-side mounting configuration for compatible CTSE connector arrangements.
- Accepts conductors from 0.14–2.5 mm².
- Silver-plated contacts provide dependable electrical connectivity.
Key Features
- Ilme CTSE series female insert.
- 24 poles + PE contact configuration.
- Right-side mounting version.
- Integrated terminal block with spring terminal connections.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Conductor capacity of 0.14–2.5 mm² / 26–14 AWG.
- Silver-plated contacts.
- Size 104.27 connector insert format.
Reliable Right-Side Spring-Terminal Connectivity
The Ilme CTSE series combines a connector insert and terminal block with spring-pressure conductor termination. On the CTSEF24R, this connection method accommodates conductors from 0.14–2.5 mm² while providing consistent clamping pressure for reliable industrial power and control wiring.
Its right-side mounting configuration distinguishes the CTSEF24R from the corresponding left-hand version and allows the appropriate orientation to be selected when designing a connector assembly. Used with a compatible bulkhead-mounted Ilme housing and mating connector components, it provides a detachable 24-pole plus PE interface for machinery and automation equipment.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Electrical control and machine wiring systems.
- Motor, actuator and equipment connections.
- Conveyor and material handling systems.
- High-density detachable multipole connector assemblies.
