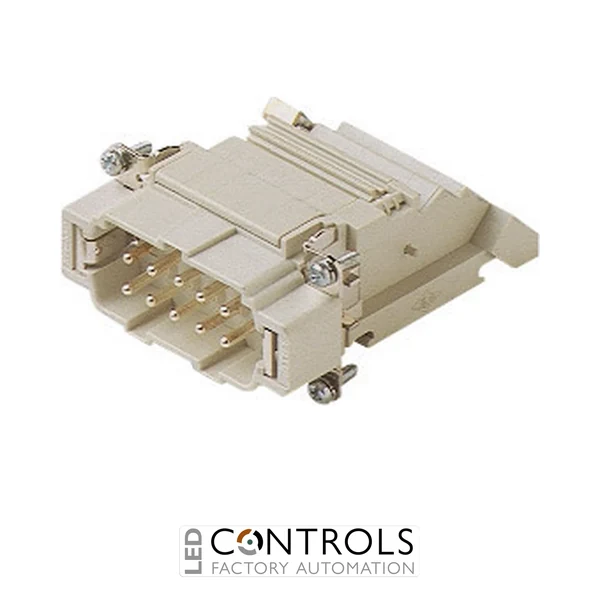

Why Choose the Ilme CTSEM10R Male Wedge Insert?
The Ilme CTSEM10R is a 10-pole + PE male industrial connector insert from the Ilme CTSE series, combining a spring terminal connection with an incorporated terminal block and a dedicated right-side mounting configuration. Designed for size 57.27 connector assemblies, it provides a robust multipole interface for machinery, automation and industrial control applications.
Rated at 16 A and 500 V, with a 6 kV rated impulse withstand voltage and pollution degree 3, the CTSEM10R is engineered for demanding industrial electrical connections. Its spring terminals accept conductors from 0.14–2.5 mm² (AWG 26–14), providing consistent conductor clamping without relying on conventional screw-terminal tightening.
The CTSEM10R uses turned silver-plated contacts and self-extinguishing thermoplastic insulation rated to UL 94 V-0. With an operating temperature range of -40 °C to +125 °C and a mechanical life exceeding 500 mating cycles, it provides dependable performance for industrial equipment requiring durable, serviceable multipole connections.
Key Advantages
- 10 poles + PE for multipole industrial power and control connections.
- 16 A, 500 V rating with 6 kV impulse withstand capability.
- Spring terminal connection maintains consistent conductor clamping pressure.
- Right-side mounting configuration for compatible CTSE connector arrangements.
- Accepts conductors from 0.14–2.5 mm² (AWG 26–14).
- Incorporated terminal block supports organised connector wiring.
- Turned silver-plated contacts provide reliable electrical performance.
Key Features
- Ilme CTSE series industrial connector insert.
- Male insert with 10 poles + PE.
- Right-side mounting.
- Spring terminal connection.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Size 57.27 connector format.
- Incorporated terminal block.
- Turned silver-plated contacts.
Reliable Spring-Terminal Connection for Industrial Wiring
The CTSEM10R uses spring-terminal technology to apply continuous clamping pressure to connected conductors. This removes the need for conventional conductor terminal screws and helps maintain dependable electrical connections in machinery and automation environments where vibration and repeated operating cycles can place additional demands on wiring systems.
Its right-side mounting configuration and incorporated terminal block distinguish the CTSEM10R from the corresponding left-hand CTSEM10L version. When installed with compatible Ilme components, the insert provides a detachable 10-pole + PE interface for power, control and auxiliary circuits while supporting straightforward installation and maintenance.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production systems.
- Packaging and materials-handling equipment.
- Electrical control and distribution equipment.
- Power, control and auxiliary circuit connections.
- OEM machinery and modular industrial equipment.
