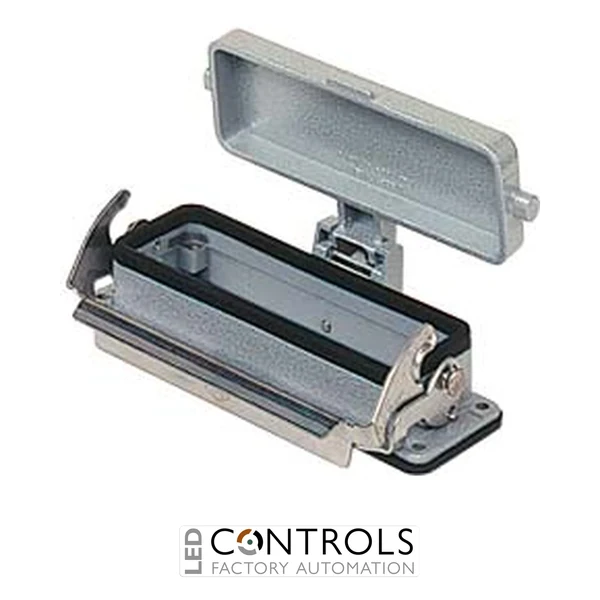

Why Choose the Ilme CVI10LS Bulkhead Mounting Housing?
The Ilme CVI10LS is a V-TYPE bulkhead mounting housing designed for heavy-duty rectangular connector installations. It combines a single stainless steel locking lever, NBR gasket and protective metal cover in a size 57.27 enclosure, providing a robust panel-mounted interface for industrial machinery, automation and control equipment.
Ilme's V-TYPE locking system uses a vertical-closing lever designed for demanding industrial applications. The CVI10LS has no cable entry because it is intended for bulkhead mounting, allowing a compatible connector insert to be installed directly at the equipment or panel interface while the stainless steel lever provides secure mechanical locking to the mating connector.
With the supplied metal cover closed and correctly secured, the CVI10LS provides an IP65 degree of protection. Its operating temperature range of -40 °C to +125 °C, stainless steel lever and gasketed construction make it suitable for industrial environments where connector interfaces require protection when disconnected.
Key Advantages
- Bulkhead mounting design provides a robust panel-mounted connector interface.
- Single stainless steel lever delivers secure V-TYPE mechanical locking.
- Supplied with a metal protective cover for the unmated connector interface.
- IP65 protection with the cover correctly closed and secured.
- NBR gasket supports environmental sealing.
- Wide -40 °C to +125 °C operating temperature range.
- Size 57.27 format supports a broad selection of compatible Ilme connector inserts.
Key Features
- Ilme V-TYPE series.
- Bulkhead mounting housing.
- One stainless steel locking lever.
- Metal protective cover.
- NBR sealing gasket.
- Size 57.27.
- IP65 degree of protection.
- No cable entry.
- RAL 7040 grey finish.
- Designed for heavy-duty industrial connector applications.
V-TYPE Locking with Protective Metal Cover
The CVI10LS combines Ilme's V-TYPE single-lever closing system with a bulkhead mounting arrangement, allowing a compatible rectangular connector to be securely mounted at an enclosure, cabinet or machine interface. The stainless steel lever provides the mechanical locking action, while the NBR gasket supports sealing between the relevant connector components.
A key feature of the CVI10LS is its metal cover, which protects the connector interface when the mating connector is removed. This makes the housing particularly useful for machinery and modular installations where electrical connectors may regularly be disconnected during maintenance, transport, equipment changeover or servicing.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Control cabinets and electrical panels.
- Packaging and materials-handling machinery.
- Modular machine and equipment connections.
- Heavy-duty multipole connector installations.
