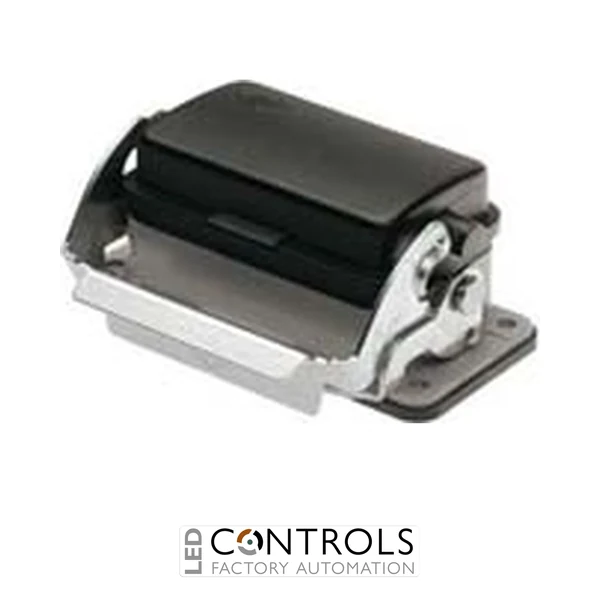

Why Choose the Ilme CVI10LSP Bulkhead Mounting Housing?
The Ilme CVI10LSP is a V-TYPE bulkhead mounting housing designed for heavy-duty rectangular connector installations. It combines a single stainless steel locking lever, NBR gasket and SIMPLEX self-closing cover in a size 57.27 enclosure, providing a robust panel-mounted connection point for industrial machinery, automation and control equipment.
Unlike a conventional removable connector cover, the integrated SIMPLEX self-closing cover automatically protects the connector interface when the mating connector is removed. The enclosure provides IP65 protection when mated and locked, while the SIMPLEX cover provides IP44 protection when the connector is unmated and the cover is closed and locked with the lever.
The CVI10LSP features an aluminium V-TYPE enclosure, stainless steel lever and an operating temperature range of -40 °C to +125 °C. With no cable entry required for its bulkhead mounting design, it provides a durable and convenient solution for machinery and equipment where connector interfaces are regularly connected and disconnected.
Key Advantages
- SIMPLEX self-closing cover automatically protects the connector interface after disconnection.
- Single stainless steel lever provides secure V-TYPE locking.
- IP65 protection when the connector is correctly mated and locked.
- IP44 protection when unmated with the SIMPLEX cover closed and locked.
- Bulkhead mounting design creates a secure panel or machine-mounted connector interface.
- NBR gasket supports reliable environmental sealing.
- Wide -40 °C to +125 °C operating temperature range.
Key Features
- Ilme V-TYPE series industrial connector enclosure.
- Bulkhead mounting housing.
- One stainless steel locking lever.
- SIMPLEX self-closing cover.
- Size 57.27.
- IP65 protection when mated and locked.
- IP44 protection when unmated with the SIMPLEX cover secured.
- NBR sealing gasket.
- Aluminium enclosure construction.
- RAL 7040 grey finish.
SIMPLEX Self-Closing Protection for Industrial Connections
The defining feature of the CVI10LSP is its SIMPLEX self-closing cover. When the mating connector is removed, the cover provides immediate protection for the bulkhead-mounted connector interface, reducing the need to manually position a separate loose cover. Once secured by the locking lever, the cover provides an IP44 degree of protection for the unmated interface.
During operation, the compatible mating connector is secured using the housing's single stainless steel V-TYPE lever. Correctly mated and locked assemblies provide IP65 protection, making the CVI10LSP particularly useful for modular machinery, maintenance connections and equipment interfaces that are routinely connected and disconnected.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Control cabinets and electrical panels.
- Packaging and materials-handling machinery.
- Modular machine and equipment interfaces.
- Frequently connected and disconnected industrial circuits.
