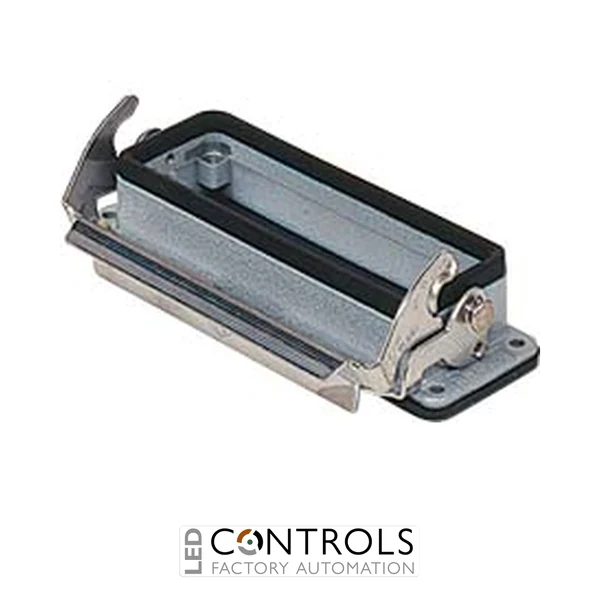

Why Choose the ILME CVI16L Bulkhead Mounting Housing?
The ILME CVI16L is a robust bulkhead mounting housing from the ILME V-TYPE enclosure range, designed for heavy-duty industrial connector installations. Manufactured in size 77.27, it features a single stainless-steel locking lever and provides a secure panel-mounted interface for compatible ILME connector inserts.
The V-TYPE locking system uses a strong stainless-steel lever to securely couple the housing with a compatible hood or mating enclosure. When correctly mated and locked, the CVI16L provides IP65, IP66 and IP69 protection, helping protect connector components against dust, water ingress and demanding industrial washdown conditions.
The CVI16L is supplied without a cable entry because it is intended for bulkhead or panel mounting, with the cable connection accommodated by the mating hood or enclosure. Its size 77.27 format supports numerous compatible ILME insert families, making it a versatile enclosure choice for industrial machinery, automation and control applications.
Key Advantages
- Heavy-duty bulkhead mounting housing for industrial connector assemblies.
- Single stainless-steel V-TYPE locking lever provides secure mating.
- IP65, IP66 and IP69 protection when correctly mated and locked.
- Standard size 77.27 format supports a wide range of compatible ILME inserts.
- Panel-mounted design provides a secure fixed connector interface.
- Suitable for machinery exposed to dust, moisture and demanding industrial environments.
Key Features
- ILME V-TYPE enclosure.
- Bulkhead mounting housing.
- 1 stainless-steel locking lever.
- Size 77.27.
- Without cable entry.
- IP65 / IP66 / IP69 protection when correctly coupled and locked.
- Designed for compatible ILME heavy-duty connector inserts.
- Suitable for fixed panel and machine mounting applications.
Secure V-TYPE Protection for Industrial Connections
The ILME V-TYPE enclosure system is designed to provide dependable connector retention and environmental protection in demanding machinery applications. The CVI16L's single stainless-steel lever securely locks the mating enclosure in position while compressing the connector gasket to maintain the specified degree of environmental protection.
Its size 77.27 interface accommodates numerous ILME insert configurations, including compatible CNE, CSE, CSH, CCE, CSS, CT, CTSE, CQE, CQEE, CP, CX and MIXO arrangements. This flexibility makes the CVI16L suitable for power, control, signal and mixed-service connections across a broad range of industrial equipment.
Typical Applications
- Industrial machinery and automation systems.
- Control cabinets and electrical panels.
- Machine-to-panel connector interfaces.
- Packaging and production machinery.
- Material handling and conveyor equipment.
- Robotics and automated manufacturing systems.
- Industrial installations requiring high ingress protection.
