Why Choose the ILME CX01GM Male MIXO Modular Insert?

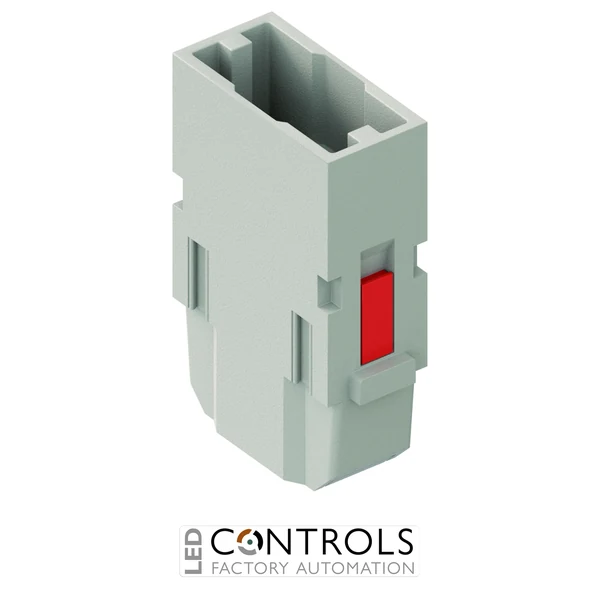

The ILME CX01GM is a high-current 1-pole male modular insert from the ILME MIXO series, designed for configurable heavy-duty connector assemblies requiring substantial power capacity within a compact modular format. Occupying just 1 MIXO module, it provides a rated current of 100 A and rated voltage of 830 V.
The CX01GM uses a crimp connection and is supplied without the male power contact, allowing the appropriate contact to be selected separately according to conductor size. Compatible ILME CGMA silver-plated male crimp contacts accommodate conductor cross-sections from 8–35 mm², enabling the module to be configured for demanding industrial power circuits.
With a rated impulse withstand voltage of 8 kV, pollution degree 3 and mechanical endurance of at least 500 mating cycles, the CX01GM provides a robust modular connection for machinery and automation installations. It installs in compatible MIXO modular frames or can be directly installed in suitable MIXO ONE enclosures.
Key Advantages
- High-current 100 A connection in only one MIXO module.
- 830 V rated voltage for demanding industrial power applications.
- 8 kV impulse withstand voltage with pollution degree 3.
- Modular design allows power connections to be combined with other MIXO functions.
- Crimp termination provides a secure, low-resistance conductor connection.
- Compatible contacts support conductors from 8–35 mm².
- At least 500 mating cycles for reusable industrial connections.
Key Features
- ILME MIXO series modular insert.
- 1 male pole.
- 1-module width.
- Crimp connection.
- 100 A rated current.
- 830 V rated voltage.
- 8 kV rated impulse withstand voltage.
- Compatible with separately ordered silver-plated CGMA male contacts.
- Suitable for 8, 10, 16, 25 and 35 mm² conductor configurations.
- Designed for compatible MIXO frames and MIXO ONE enclosures.
High-Current Power Connections in the MIXO Modular System
The ILME CX01GM allows a 100 A power circuit to be incorporated alongside other power, signal, data or pneumatic modules within a configurable MIXO connector assembly. Its single-module width helps maximise connector density while maintaining the electrical performance required for high-current industrial equipment.
The insert is supplied without the crimp contact, which must be ordered separately to match the conductor cross-section. Male CGMA contacts are available for 8–10 mm², 16 mm², 25 mm² and 35 mm² conductors, allowing the connector to be configured for the required cable size while retaining the CX01GM's 100 A modular interface.
Typical Applications
- Industrial machinery power connections.
- Motor and drive power interfaces.
- Robotics and automated manufacturing equipment.
- Power distribution within modular connector assemblies.
- Material handling and conveyor systems.
- Machine tools and production equipment.
- Combined power, control and signal MIXO connector systems.
