Why Choose the ILME CX 01 GPEF Female MIXO PE Modular Insert?

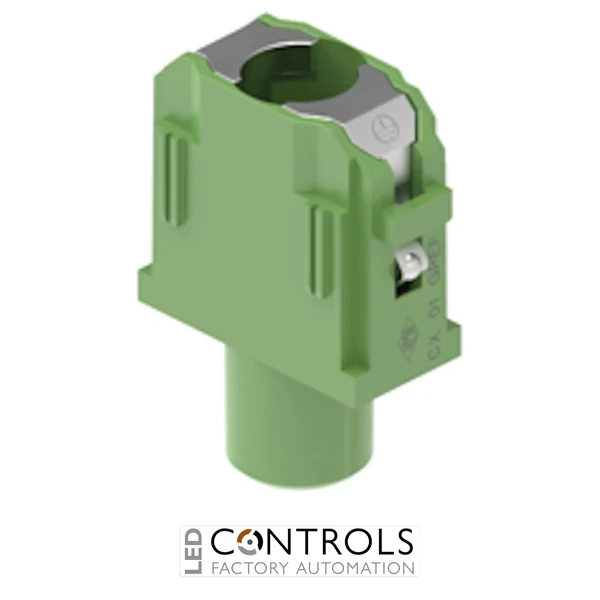

The ILME CX 01 GPEF is a female MIXO modular insert designed to provide a dedicated protective earth connection within modular heavy-duty industrial connector assemblies. Part of the ILME MIXO series, this single-module insert provides one PE pole with crimp termination for reliable earthing in machinery, automation and industrial power installations.
The CX 01 GPEF uses ILME's modular MIXO architecture, allowing earth, power, signal, data and pneumatic connections to be combined within a single compatible connector enclosure. Its green polycarbonate body provides clear identification of the protective earth function while offering durable electrical insulation and resistance to demanding industrial operating conditions.
Rated for currents up to 100 A, the CX 01 GPEF uses a female crimp contact arrangement and occupies only 1 module within a MIXO modular frame. The insert is intended for use with separately ordered compatible ILME CG series female crimp contacts, providing a dependable PE termination for high-current modular connector systems.
Key Advantages
- Dedicated protective earth modular insert for ILME MIXO connector systems.
- 100 A current rating supports high-current industrial earthing applications.
- Compact 1-module format conserves space within modular connector frames.
- Female configuration with reliable crimp connection technology.
- Green RAL 6011 housing provides clear identification of the PE connection.
- Designed for at least 500 mating cycles in industrial installations.
Key Features
- ILME MIXO modular connector series.
- 1 PE pole for protective earth termination.
- Female modular insert configuration.
- 100 A rated current.
- Crimp connection for secure conductor termination.
- Occupies 1 module within a compatible MIXO frame.
- Polycarbonate insulating body with UL 94 V-0 flammability rating.
- Compatible crimp contacts are ordered separately.
Reliable Protective Earth Connection for Modular Systems
Protective earth connections are essential within industrial connector assemblies because they provide a low-resistance path for fault currents and help maintain safe equipotential bonding between conductive equipment parts. The ILME CX 01 GPEF provides a dedicated PE connection within the flexible MIXO modular connector platform.
Its high-current crimp termination and compact modular construction make it suitable for machine builders and control-system designers who need to combine protective earth with power, control, signal or communication circuits inside a single heavy-duty connector assembly.
Typical Applications
- Industrial machinery and machine building.
- Heavy-duty modular connector assemblies.
- Automation and control equipment.
- Motor and drive connection systems.
- Power distribution and electrical panels.
- Robotics and production machinery.
